High Low Temperature Chamber
Temperature Range:-120℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Temperature,climate,vibration,corrosion,altitude, pressure or combined test
Type: Benchtop, Floor Stand & Walk In
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L

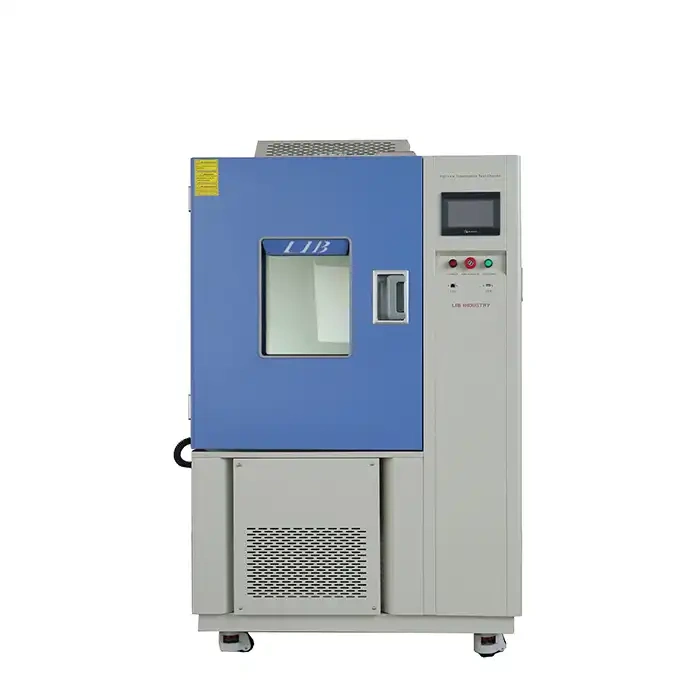

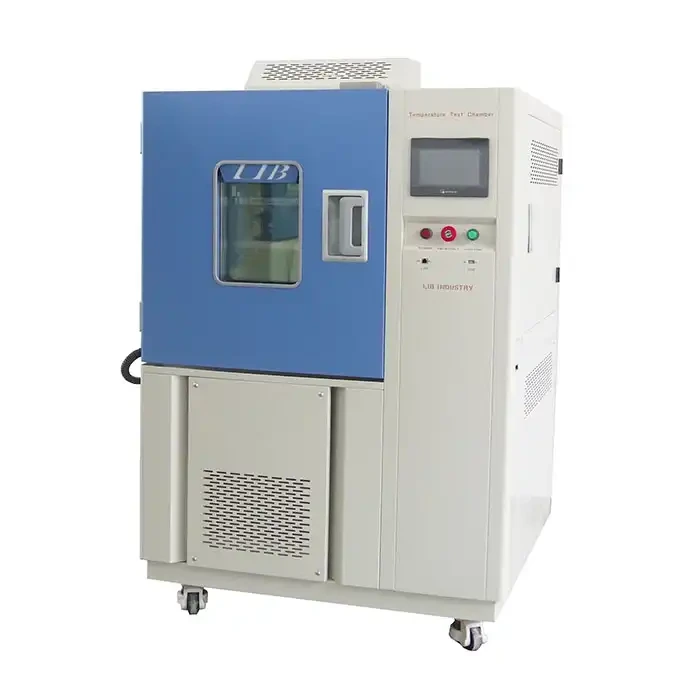

High Low Temperature Chamber Manufacturer & Supplier
The high low temperature chamber is used to simulate extreme temperature conditions for product testing. It consists of an insulated chamber, refrigeration system, heating system, humidity control, air circulation fans, and a microprocessor controller. The chambers provide precise temperature testing across a wide range from -70°C to +180°C. The capacity varies from 100 liters to 1000 liters.
Technical Specifications
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 3 ℃ / min | ||||
Heating Rate | 1 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|

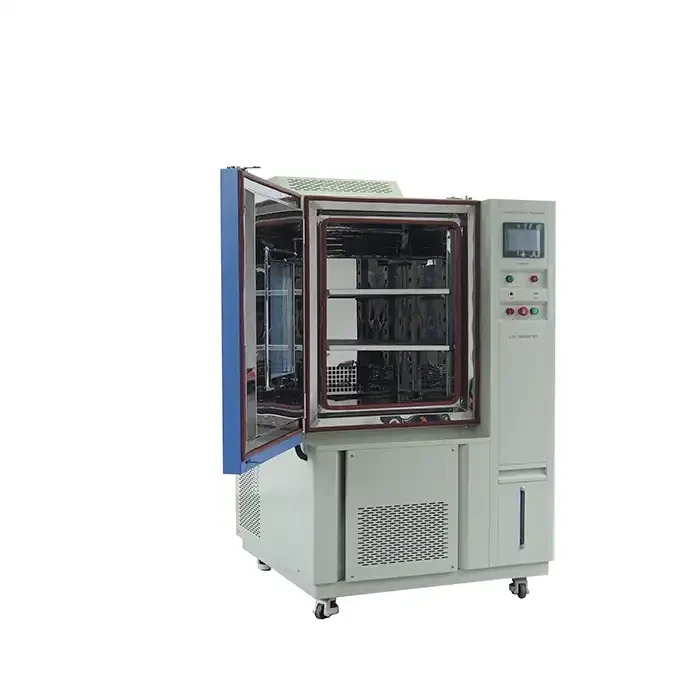

| PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Sample shelf SUS304 stainless steel punching sample shelf 2pcs; Standard load of 50KGS for each layer of sample shelf | Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed |
|
|
High Low Temperature Chamber Applications
High Low Temperature Chamber are used across industries:
Aerospace: The chambers are broadly utilized in the avionic business to test parts, materials, and frameworks at outrageous temperatures.
Automotive: In the auto business, the chambers are utilized for warm shock testing of mechanical and electrical parts.
Military: High-low temperature chambers assume a critical part in military applications by testing ammo, explosives, oils, and different materials at temperature limits.
Electronics: The gadgets business depends on the chambers for warm shock and cycling testing of printed circuit sheets (PCBs), semiconductors, and electronic parts.
Pharmaceutical: High-low-temperature chambers are utilized in the drug business for dependability testing of drug items as per the Worldwide Committee for Harmonization of Specialized Necessities for Drugs for Human Use (ICH) rules.
Food: The chambers track down application in the food business for mimicking freezing, refrigeration, and cleansing cycles.
Packaging: The chambers are used in the bundling business to assess the exhibition of bundling materials, holders, and frameworks at high and low temperatures.
Key Features
The high low temperature chamber offers:
1. Wide Temperature Range: LIB industry's chambers offer a wide temperature range, typically from -70°C to +180°C, allowing for the simulation of diverse environments.
2. Rapid Heating and Cooling Rates: These chambers are equipped with rapid heating and cooling capabilities, with rates up to 10°C/min.
3. Excellent Thermal Uniformity: The chambers maintain excellent thermal uniformity throughout the chamber's interior space.
4. Programmable Temperature Profiles and Dwell Times: With their programmable controllers, high low-temperature chambers allow users to set up precise temperature profiles and dwell times.
5. View Windows and Interior Lighting: High-low temperature chambers feature view windows and interior lighting, allowing operators to visually inspect the test samples without compromising the internal temperature conditions.
6. Compact Footprint: The chambers are designed with a compact footprint, ensuring efficient utilization of valuable laboratory space. This compact design allows for installation in tight spaces without sacrificing performance or functionality.
7. Programmable Touchscreen Controller: These chambers are equipped with an touchscreen controller that simplifies setup and operation.
