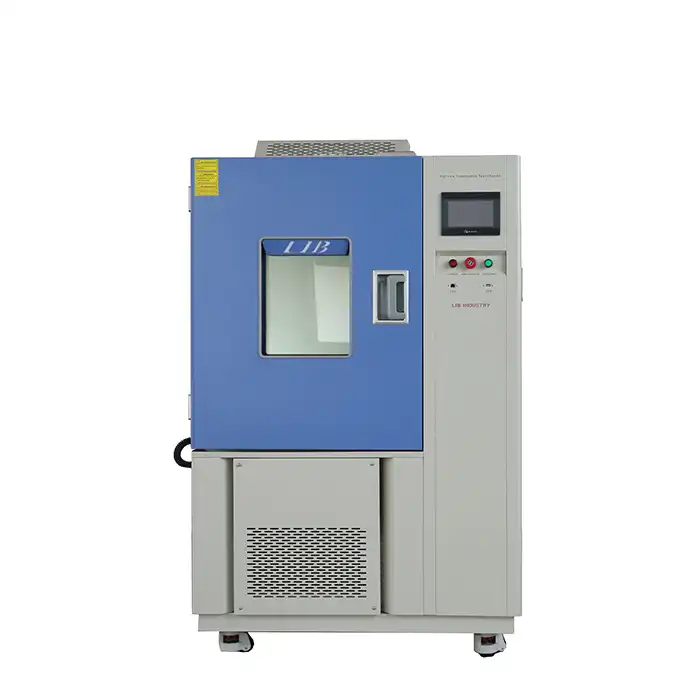

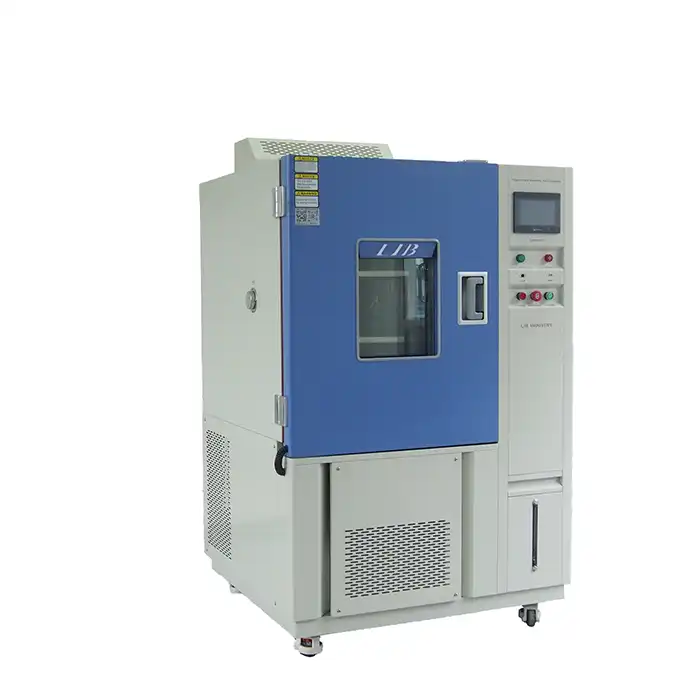

Cable Air Oven
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Standard and Custom Chambers
Temperature,climate,vibration,corrosion,altitude, pressure or combined test Type: Benchtop, Floor Stand & Walk In

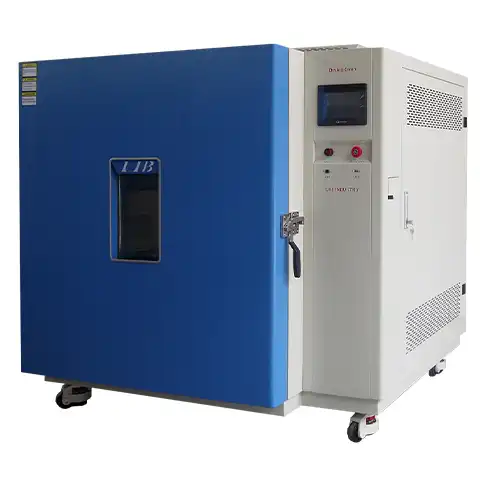

Cable Air Oven Manufacturer & Supplier
A Cable Air Oven is designed to maintain a constant temperature and humidity, making it ideal for various tests, including stability studies, climate testing, and conditioning.
A hole in the side of the aging test chamber allows cables to reach into the studio to energize the product under test.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||

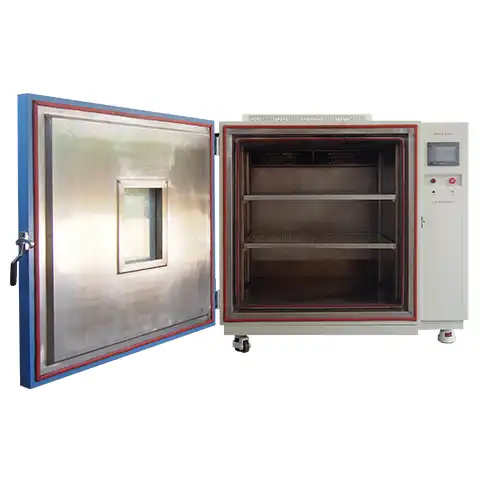

Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Performance Details
|
|
|

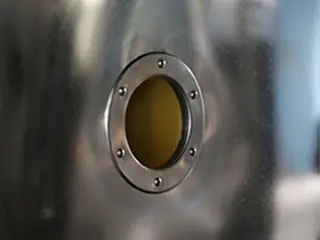

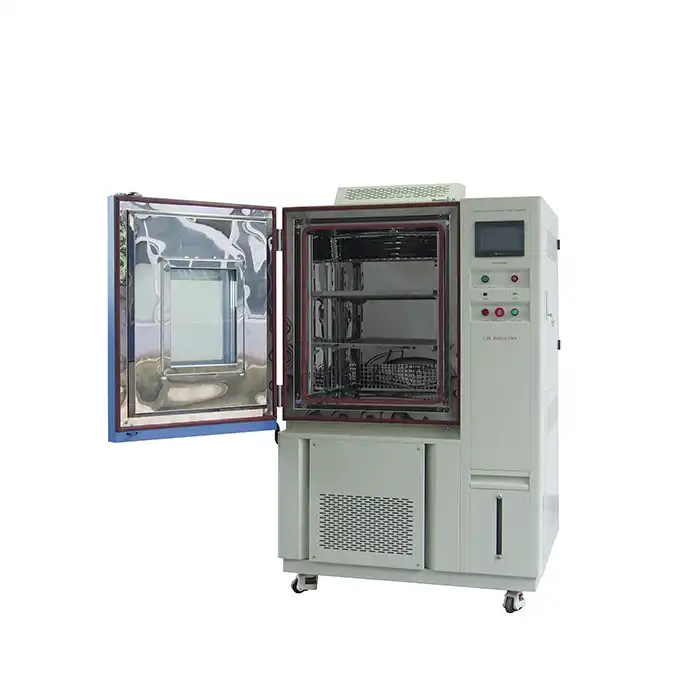

| Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion; | Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed |
|
|
Applications
Cable Air Oven is used across a wide range of industries for various applications:
●Food Industry: Stability Testing: The chambers play a vital role in conducting stability tests for food products, including packaged and processed foods. These tests evaluate the impact of temperature, humidity, and other environmental factors on the shelf life, quality, and safety of food items, helping manufacturers ensure product stability, freshness, and compliance with food safety regulations.
●Research: Sample Stress-Testing: The chambers are utilized in research settings for stress-testing of samples and specimens to evaluate their response to controlled environmental conditions. This includes assessing the effects of temperature variations, humidity levels, and other environmental factors on the properties and behavior of materials, supporting research endeavors in fields such as materials science, chemistry, and engineering.
●Aging and Long-Term Stability Tests: These chambers are instrumental in conducting aging tests and long-term stability studies on a wide range of materials and products. By subjecting samples to prolonged exposure to specific environmental conditions, researchers can assess the long-term performance, degradation patterns, and deterioration mechanisms, providing valuable insights for product development and quality assurance.
●Industrial products: Environmental Impact Assessment: Cable Air Oven is employed to test the impact of diverse environmental and climatic conditions on industrial goods, equipment, and components. This includes evaluating the resistance, reliability, and performance of industrial products when exposed to temperature variations, humidity, corrosion, and other environmental stress factors, aiding in the enhancement of product quality and durability.
Features and Advantages
Cable Air Oven offers several features and advantages:
●Temperature range, humidity range optional, wide range
●Size and configuration can be selected on request
●Can be specially customized
●Provide one-stop solution
●Provide door to door service
●36-months long warranty
●Automatic water supply saves water resources
