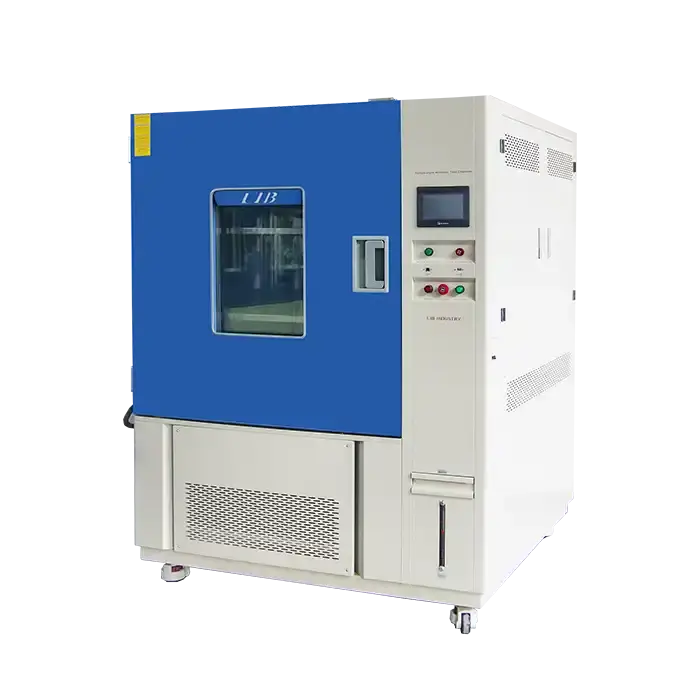

Environmental Test Chamber
Temperature Range:-86℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Water purification and recirculation system
Access port to power the sample
Standard and Custom Chambers
Environmental Test Chamber Manufacturer & Supplier
LIB industry's Environmental Test Chamber comes in two types including reach-in chambers and walk-in chambers. Extended choice of options fitted to your testing. You can select your chamber from the door, refrigeration system, controller, language and so much more. Provide temperature, climate, vibration, corrosion, altitude, pressure combined test.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Attributes
|
|
|

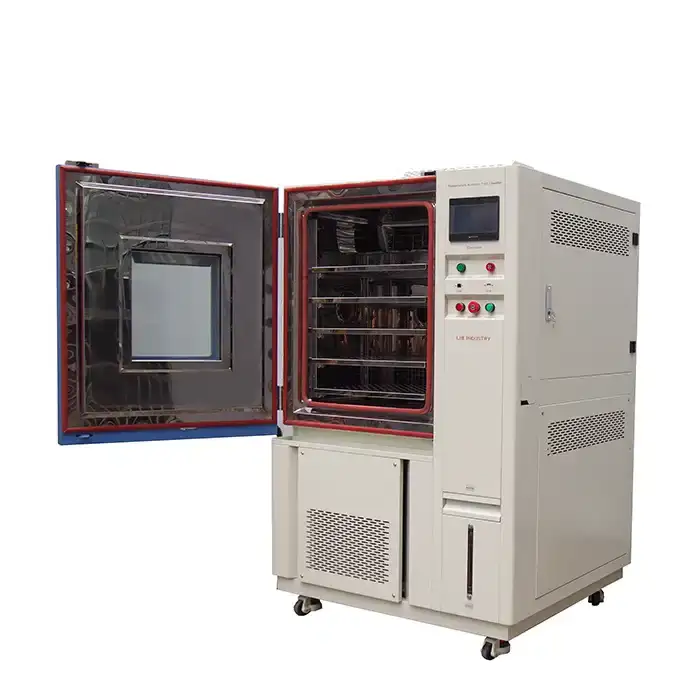

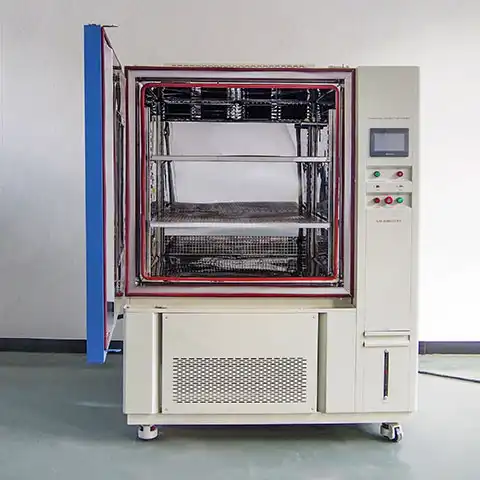

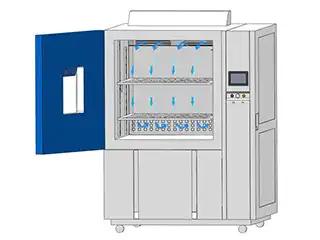

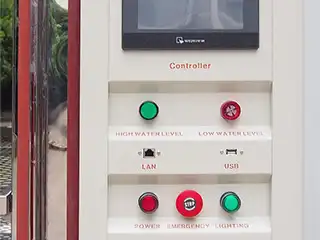

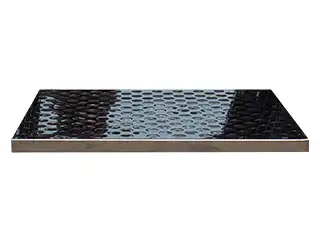

| Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Operation panel Emergency stop button Lighting and power LAN and USB | Sample shelf The height of the shelf is adjustable and can be removed Conducive to the air circulation |
|
|
Key Features
◇Diverse Temperature Ranges: From as low as -86℃ to a high of +150 ℃
◇Humidity Control: Precise humidity control ranging from 10% to 98% RH
◇Observation: The built-in lighting enhances visibility for thorough test observation.
◇Sample Access: The access port allows for easy powering of samples during testing.
◇Water Purification System: Ensures a constant supply of purified water for reliable testing.
◇Customization: LIB Industry offers customization options to tailor chambers according to specific client requirements.
◇Applications: Our Environmental Test Chamber finds applications in various industries, including electronics, aerospace, automotive, pharmaceuticals, and more.
FAQ
Q: Can the chambers be customized for specific testing requirements?
A: Yes, we offer customization services to meet the unique needs of our clients.
Q: What is the lead time for product delivery?
A: Standard 7-14 days, some chambers are ready to ship.
Q: Are test reports provided with the chambers?
A: Yes, each chamber comes with comprehensive test reports and certifications, ensuring quality and compliance.
How to maintain Environmental Test Chamber?
To maintain an environmental test chamber, follow these steps:
1. Regular cleaning: Clean the chamber regularly to remove any dirt, dust, or debris that may have accumulated.
2. Calibrate sensors: Periodically calibrate the temperature, humidity sensors in the chamber to ensure accurate readings.
3. Check electrical parts: checking electrical connections, and inspecting filters.
4. Monitor and control temperature and humidity: Use the control panel or software interface to monitor and control the temperature and humidity levels inside the chamber.
5. Avoid overloading: Do not overload the chamber with too many samples or equipment.
7. Keep the chamber well-ventilated: Ensure proper ventilation around the chamber to prevent overheating and allow for proper air circulation.
8. Train operators: Provide proper training to the operators or technicians who will be using the chamber.
