thermal shock tester

LIB Industry thermal shock tester is designed to provide rapid transitions between hot and cold temperature zones.2-zone and 3-zone thermal shock chambers are available.
Lower limit Temperature:-75℃
Upper limit Temperature:+220℃
Temperature Range:-70℃～+220℃
The specimen automatic transferred from cold chamber to hot chamber by basket.
Temperature Recovery Time: Within 5 minutes
Refrigerant: Environmental refrigerant
Product Description

LIB Industry thermal shock tester Manufacturer & Supplier

The LIB Industry thermal shock tester stands as a pinnacle in precision testing equipment, designed meticulously to endure extreme thermal conditions for various industrial applications. Its robust structure comprises three chambers: the high-temperature chamber, low-temperature chamber, and a transition chamber, facilitating rapid and precise temperature transitions within a short time.

Technical Specifications:

Model

TS-162

TS-340

TS-500

TS-1000

Internal Dimensions (mm)

300*300*250

450*450*360

650*650*500

850*850*700

Overall Dimension (mm)

1560*870*1545

1710*1020*1845

1910*1220*2265

2110*1420*2665

Interior Volume (mm)

22L

72L

211L

505L

Loading Capacity

20kg

30kg

50kg

60kg

Upper limit Temperature

+220℃

Heating Time

Ambient ~ + 200℃, within 30 minutes

Lower limit Temperature

-75℃

Cooling time

Ambient ~ -70℃, within 30 minutes

High Temperature  Exposure Range

Ambient +20 ~ +200°C

Low temperature Exposure Range

–65 ~ -5°C

Temperature Fluctuation

≤±0.5℃

Temperature Deviation

≤±3 ℃

Temperature Recovery Time

Within 5 minutes

Cooling System

Mechanical compression refrigeration system

Controller

Programmable color LCD touch screen controller, Ethernet connection

Safety Device

Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

2 shelves

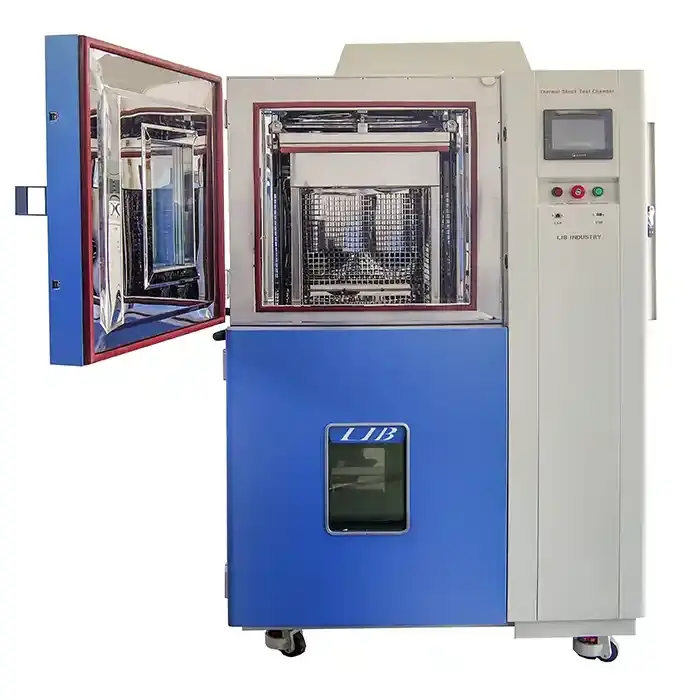

Product Details




Basket

The internal material is 304 stainless steel, rust-proof to high and low temperature and moisture corrosion; double layer sample racks

Cooling system

The two-zone thermal shock tester has two cooling options, air cooling and water cooling. Water cooling requires a water tower

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data



The LIB Industry thermal shock tester finds applications across various industries such as aerospace, automotive, electronics, and materials science. It's indispensable in testing the resilience of materials and components used in these sectors under extreme temperature changes.
