Salt Spray Tester
Temperature Range:+10 ℃ ～ +90 ℃
Humidity Range:30% ~ 98% RH
SO2 Gas Control:Control and display volume of SO2 gas
Cooling system:Mechanical compression refrigeration system
Air Preheating:Saturated air barrel (31Liter)
Spraying System:Atomizer tower and Spray nozzles
Salt Spray Tester Manufacturer & Supplier
LIB industry is professional Salt Spray Tester manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
The LIB Salt Spray Testers is an advanced corrosion testing equipment that combines salt spray corrosion with precise control of temperature, humidity and SO2 gas. It meets international standards such as ASTM B117, ISO 9227, GB/T 10125 for salt spray testing. With a temperature range of +10°C to +90°C, humidity control from 30% to 98% RH, and SO2 gas control, this versatile salt fog tester enables a wide range of accelerated corrosion testing scenarios.
Saturated air is preheated in a 31 liter barrel built in the test chamber. The atomizer tower and spray nozzles generate a consistent corrosive salt fog environment. An PID touch screen control system allows easy programming and monitoring of test parameters like temperature, humidity, spray cycles.
Standards
ASTM B117
ISO 9227
ASTM G85
ISO7253
IEC60068-6-52
Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||

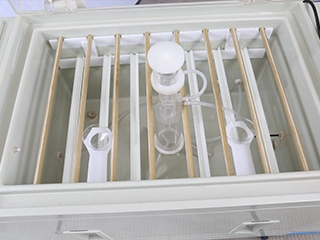

Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Descriptions
|
|
|

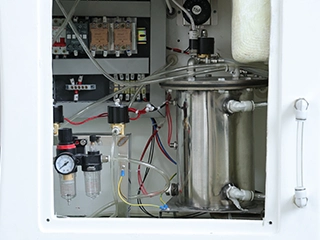

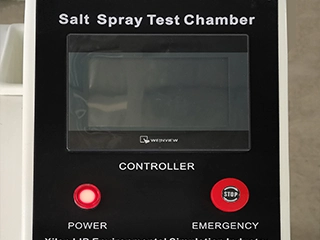

Controller PID control system Language can be selected, English/French/Spanish/German/Russian | Workroom The material is glass fiber reinforced plastics which has strong corrosion resistance，long service life and high temperature resistance. | Saturated Barrel The air is preheated in the saturated barrel. Protection against dry burning. If the water level is low, the spray will stop. |
|
|
Product Features
Precise temperature control from RT+10°C to +90°C
Adjustable humidity 98% RH
SO2 gas control as option
Uniform salt fog distribution
Programmable spray cycles
Key Advantages
◇Salt Spray Tester Provides accelerated corrosion testing results
◇Simulates artificial salt fog atmospheres
◇Complies with international standards
◇Allows combined corrosive environments (SO2 gas)
◇Precise control of temperature and humidity
◇Cost-effective solution for corrosion testing
Salt Spray Tester Applications
Salt Spray Tester is ideal for conducting corrosion testing on materials and coatings across industries like automotive, aerospace, electronics, metal finishing, mining and more in accordance with international standards. The applications include:
Testing corrosion resistance of metals and alloys
Evaluating the performance of organic coatings
Assessing the quality of corrosion inhibitors
Determining effects of SO2 in industrial atmospheres
