Precision Water Ingress Testing: The Power of IPX5/IPX6 Rain Jet Chambers

The IPX5 IPX6 rain jet test chamber is a vital tool for manufacturers looking to meet international standards for water resistance. These chambers simulate real-world conditions, testing products to ensure they can withstand exposure to water jets with varying pressures and intensities.

Why Precision Matters in IPX5 and IPX6 Water Ingress Testing?

Precision in water ingress testing is critical because even minor deviations in testing conditions can lead to inaccurate results. For example, a product that fails to meet water resistance standards could malfunction in the field, leading to potential safety hazards and costly recalls. On the other hand, a product that passes an imprecise test may not be as water-resistant as advertised, damaging a company's reputation and exposing users to unnecessary risks.

Water ingress testing for IPX5 and IPX6 ensures that products can endure specific levels of water exposure. IPX5 tests involve exposure to water jets at a lower pressure, while IPX6 tests simulate more intense water spray. Achieving precision in these tests is essential because each product’s performance must meet exact standards to ensure that it can withstand real-world conditions.

How IPX5 IPX6 Rain Jet Chambers Achieve Unparalleled Accuracy?

The IPX5 IPX6 rain jet test chamber is designed to deliver controlled and repeatable test conditions, ensuring unrivaled precision in water ingress testing. These chambers utilize advanced technology to regulate variables such as water pressure, jet angle, and spray duration - all key factors that influence the accuracy of the test.

For IPX5 testing, the chamber delivers water jets at 12.5 liters per minute with a nozzle diameter of 6.3 mm, simulating moderate rain exposure. IPX6 testing ramps up the pressure, delivering water jets at 100 liters per minute with a 12.5 mm nozzle. The accuracy of these parameters is critical, as even the slightest variation in water pressure can affect the results.

IEC 60529 Standards: A Closer Look at the Parameters Defining IPX5 and IPX6 Precision

When dealing with environmental testing, adherence to international standards is non-negotiable. The IEC 60529 standard defines the exact parameters that determine a product's ingress protection (IP) rating. For IPX5 and IPX6, these standards specify the water jet intensity, the angle of spray, the distance between the nozzle and the product, and the duration of the test.

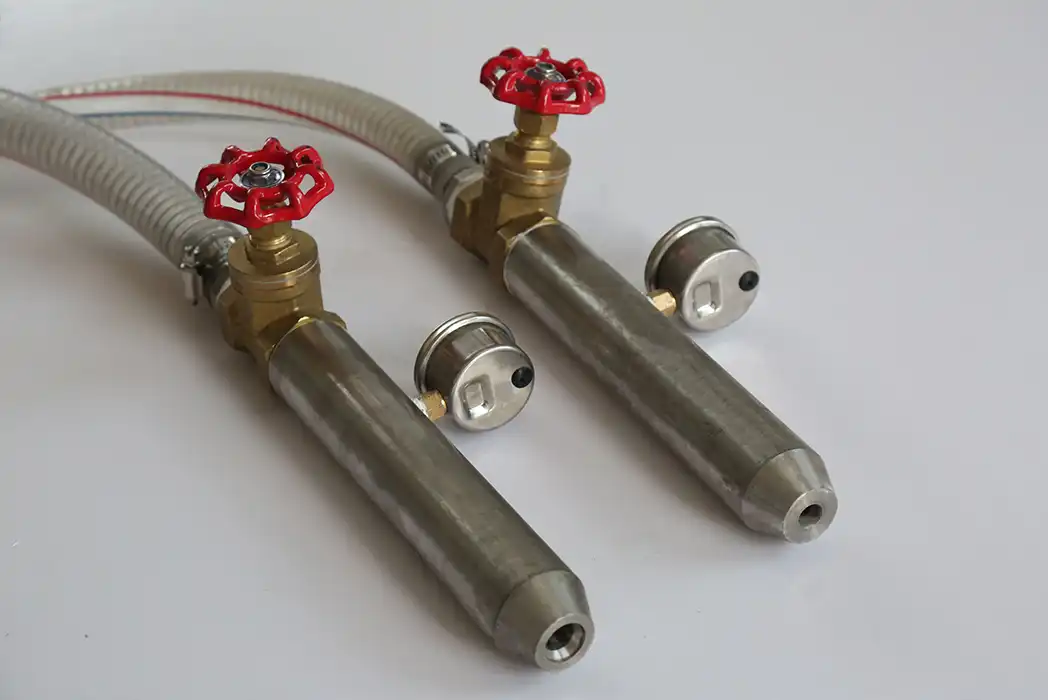

IPX5 X6 Spray nozzles

For IPX5, the test requires the product to withstand water jets from a nozzle with a 6.3 mm diameter, at a flow rate of 12.5 liters per minute, directed from all angles for at least 3 minutes. IPX6 increases the intensity, with a 12.5 mm nozzle delivering 100 liters of water per minute, again sprayed from all angles but at a higher pressure. The product must endure these conditions without water entering in sufficient quantities to impair its functionality.

By following the IEC 60529 standards, manufacturers can confidently certify that their products meet global safety and durability requirements. But achieving this level of precision requires highly specialized equipment, such as the IPX5 IPX6 rain jet test chamber.

The Role of IPX5 IPX6 Rain Jet Chamber Design and Construction in Accurate Testing

The design and construction of an IPX5 IPX6 rain jet test chamber play an integral role in ensuring accurate results. These chambers are equipped with precision-engineered nozzles that deliver water jets at specific pressures and angles. The internal layout is designed to prevent water recirculation, which could skew results by introducing unintended variables into the test environment.

Moreover, the chamber's construction materials are carefully selected to resist corrosion and wear, ensuring that the equipment remains reliable over extended periods of use. Stainless steel and other durable materials are commonly used to ensure long-term performance, especially when dealing with high-pressure water jets.

Additionally, these chambers are equipped with advanced controls that allow operators to precisely adjust the test parameters according to the product's specifications. This level of customization ensures that the testing process is tailored to the unique requirements of each product, providing highly accurate and repeatable results.

LIB IPX5 IPX6 Rain Jet Test Chamber

At LIB Industry, we specialize in manufacturing high-quality environmental test chambers that meet the rigorous demands of global manufacturers. Our IPX5 IPX6 rain jet test chamber is designed to deliver precise, repeatable water ingress testing in compliance with IEC 60529 standards. Key features of the LIB rain jet test chamber include:

- Precision-engineered nozzles: Ensure accurate water jet delivery at both IPX5 and IPX6 pressure levels.

- Advanced control systems: Allow for easy adjustment of water flow, pressure, and spray angles to meet the specific needs of each test.

- Durable construction: Made from corrosion-resistant materials, ensuring long-term reliability even under continuous use.

- User-friendly interface: Intuitive controls make it easy to set up and run tests, reducing the time needed for product certification.

By choosing the LIB IPX5 IPX6 rain jet test chamber, manufacturers can be confident that their products will be tested under the exact conditions required to meet international water ingress protection standards. This ensures both the durability of their products and the safety of their end users.

To learn more about how LIB's environmental test chambers can help you meet your product testing needs, contact us today at ellen@lib-industry.com.

References

1. IEC 60529: Degrees of Protection Provided by Enclosures (IP Code)

2. International Electrotechnical Commission. "IP Ratings: Overview and Test Methods."

3. Environmental Testing Techniques for Ingress Protection: A Practical Approach.

4. Water Ingress Testing for Consumer Electronics: Understanding IPX5 and IPX6 Standards.
