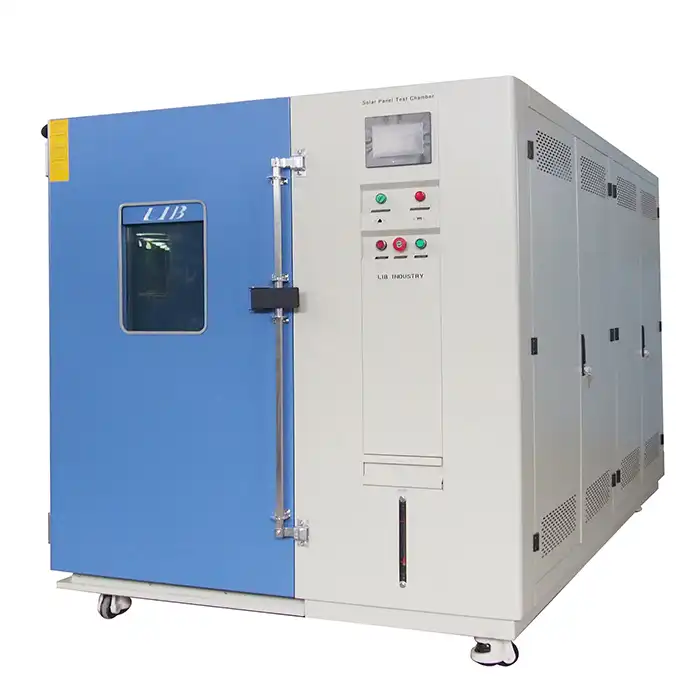

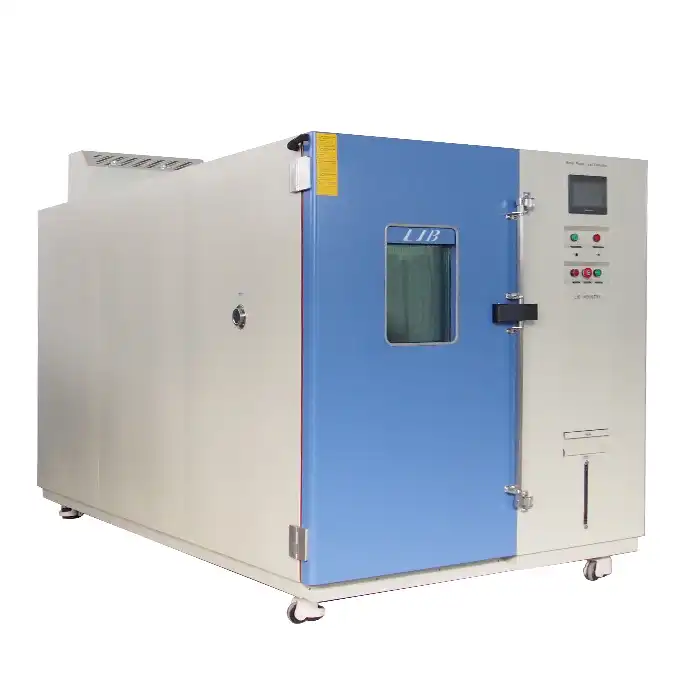

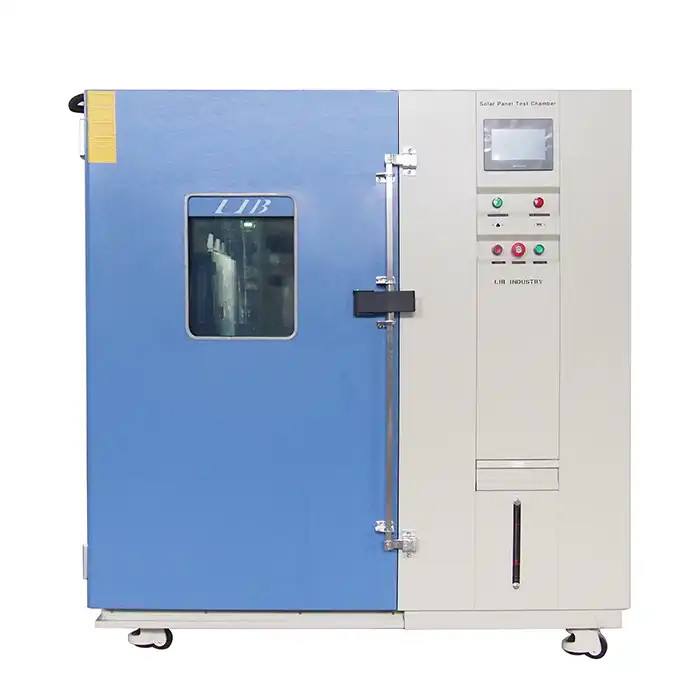

Environmental Testing Chamber For PV Module
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Type: Benchtop, Floor Stand & Walk In
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L
Environmental Testing Chamber For PV Module Manufacturer & Supplier
LIB Industry Environmental Testing Chamber For PV Module is a controlled environment in which photovoltaic (PV) panels can be tested and evaluated under various conditions. The chamber simulates different weather conditions, such as temperature, humidity, and solar radiation, to assess the performance and durability of the PV panels.
Test standards include IEC 61215 and UL 1703, It covers various aspects such as thermal cycling, humidity freeze and damp heat testing.
Technical Specifications
Model | PV-04 |
Internal Dimension (mm) | 1300*700*1350 |
Overall Dimension (mm) | 1900*1100*1750 |
Interior Volume | 1220L |
Temperature Range | -60℃ ～ +100 ℃ |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 20% ~ 98% RH |
Humidity Deviation | ± 2.5% RH |
Temperature Change Rate | 1 ~ 3.4℃ / Min |
Panel Size | 1M*2M |
Panel Capacity | 4 / 6 / 8 / 10 / 12 Pieces |
Product Details
|
|
|
| Cable hole A standard test hole with plugs 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | Sample shelf SUS304 stainless steel vertical sample shelf The height of the shelf is adjustable and can be removed | Controller Can create120 programs 100 segment. Language can be selected, English/French/Spanish/German/Russian |
|
|
Product Features
LIB Industry Environmental Testing Chamber For PV Module is designed to fulfill a multitude of functions, making it an indispensable tool for comprehensive photovoltaic testing:
●Temperature and Humidity Control: The chamber enables precise control of temperature and humidity levels
●Perfrom thermal cycling, humidity freeze and damp heat testing according to IEC 61215 standard
●The sample rack is adjustable and can test photovoltaic modules of different sizes.
●Quick Ramp-up: Rapid temperature and humidity adjustments for accelerated testing.
Applications
The Environmental Testing Chamber For PV Module is indispensable for research and development, quality control, and certification testing of solar panels, modules, and related photovoltaic components.
FAQ
Q: Can the chamber simulate extreme weather conditions?
A: Yes, the chamber can simulate a wide range of temperatures, humidity levels, and light intensities to replicate diverse environmental conditions.
Q: Is technical support available?
A: LIB Industry provides 3-year long warranty and fast response after sales team.
Q: Do you have any more chambers to test PV panels?
A: Yes, LIB Industry provide climate chamber, salt spray chamber, UV-Proconditioning chamber to test PV panels.
