Extreme Water Resistance Explained: The IEC 60529 IPX9k Standard Demystified

For industries that require equipment to withstand high-pressure, high-temperature water exposure, the IEC 60529 IPX9K equipment standard is the ultimate benchmark. This standard ensures that products can endure some of the harshest environments, providing manufacturers and consumers with reliable protection against water ingress.

Decoding IPX9K: Understanding High-Pressure, High-Temperature Water Ingress Protection

IPX9K is one of the highest levels of water ingress protection available, as defined by the IEC 60529 standard. It's designed to test the durability of equipment under extreme conditions where water is sprayed at high pressure and high temperature from multiple angles. Products that pass the IPX9K test can withstand water jets with a pressure of up to 100 bar at temperatures as high as 80 °C. This rigorous test ensures the equipment is not just waterproof, but capable of functioning in environments where water exposure is both intense and sustained.

Beyond Waterproof: Defining the Rigorous Requirements of the IPX9K Test Procedure

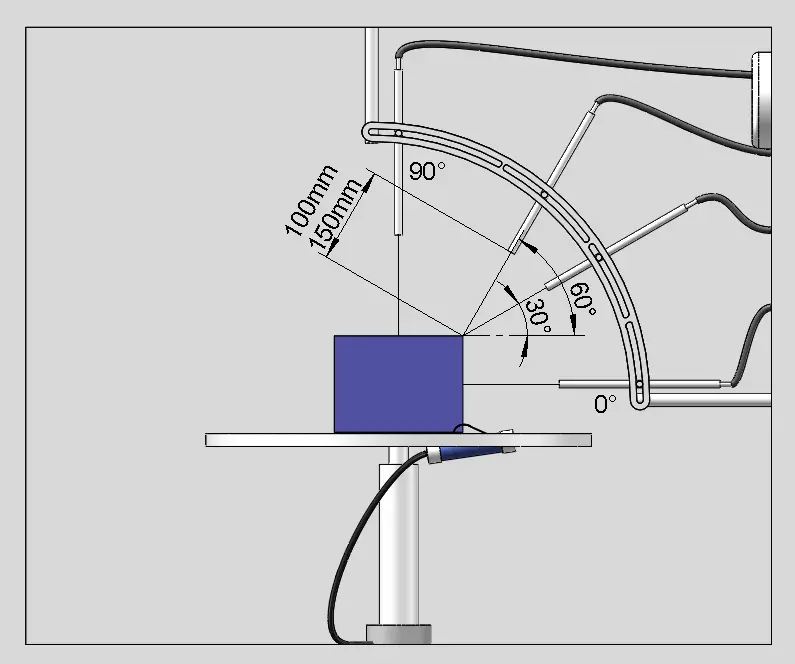

The testing procedures for IEC 60529 IPX9k equipment go beyond basic waterproofing requirements by subjecting products to conditions that simulate extreme real-world water exposure. The test involves water jets sprayed from four angles - 0°, 30°, 60°, and 90° - at a distance of 100-150 mm. These water jets are delivered at pressures from 80 to 100 bar and temperatures reaching 80 °C. The equipment being tested is rotated on a turntable to ensure every surface is exposed to the jets, simulating the challenges faced in industries like automotive, aerospace and marine applications.

For example, in the automotive industry, vehicles may be exposed to high-velocity water during cleaning or in extreme weather conditions. The IPX9K test ensures that components such as electrical systems, sensors, and headlights can withstand these harsh environments without failing. This level of protection is essential for maintaining the functionality and safety of such products in real-world conditions.

How IEC 60529 IPX9K Test Chambers Replicate Extreme Water Exposure?

IEC 60529 IPX9k equipment are designed to replicate the extreme conditions outlined in the IPX9K standard. These chambers are equipped with high-pressure water nozzles that simulate water jets at specified angles and pressures, ensuring uniform exposure across the product. The chambers also maintain high temperatures, up to 80°C, to simulate the added thermal stress that equipment might face in operational environments.

LIB Industry offers advanced IEC 60529 IPX9k equipment that meet IEC 60529 standards. These chambers are equipped with precision-engineered nozzles, adjustable turntables, and temperature control systems that allow manufacturers to conduct tests in a controlled environment. The result is reliable, repeatable testing that ensures compliance with the rigorous IPX9K standard.

For instance, a manufacturer producing outdoor electronic devices, such as security cameras, might use an IPX9K test chamber to ensure their products can withstand heavy rain, pressure washing, and other forms of water exposure. By simulating these conditions in a controlled setting, the manufacturer can confidently certify their products as IPX9K-compliant.

Exploring the Critical Applications of IPX9K-Rated Products

IPX9K-rated products are crucial in a wide range of industries. In the automotive sector, components like headlights, sensors, and control systems must be able to endure high-pressure water cleaning and extreme weather conditions. These products need to withstand not only water ingress but also the corrosive effects of road salts, dirt, and grime, ensuring long-term functionality and safety.

In aerospace, whether exposed to rain, high-pressure water from cleaning processes, or fluctuating temperatures, aerospace components require the highest level of protection to maintain their integrity and ensure the safety of both aircraft and passengers.

For marine applications, equipment like navigation systems, motors, and electrical components must be resistant to high-pressure water spray, as well as saltwater and humidity. IPX9K-rated products are vital in preventing corrosion and ensuring that marine equipment operates reliably in harsh and unpredictable environments.

Finally, outdoor equipment manufacturing also benefits greatly from IPX9K-rated products. Whether it's outdoor power tools, camping gear, or surveillance systems, ensuring their ability to withstand high-pressure water jets and tough environmental conditions is crucial for maintaining performance and longevity.

LIB IEC 60529 IPX9k Equipment

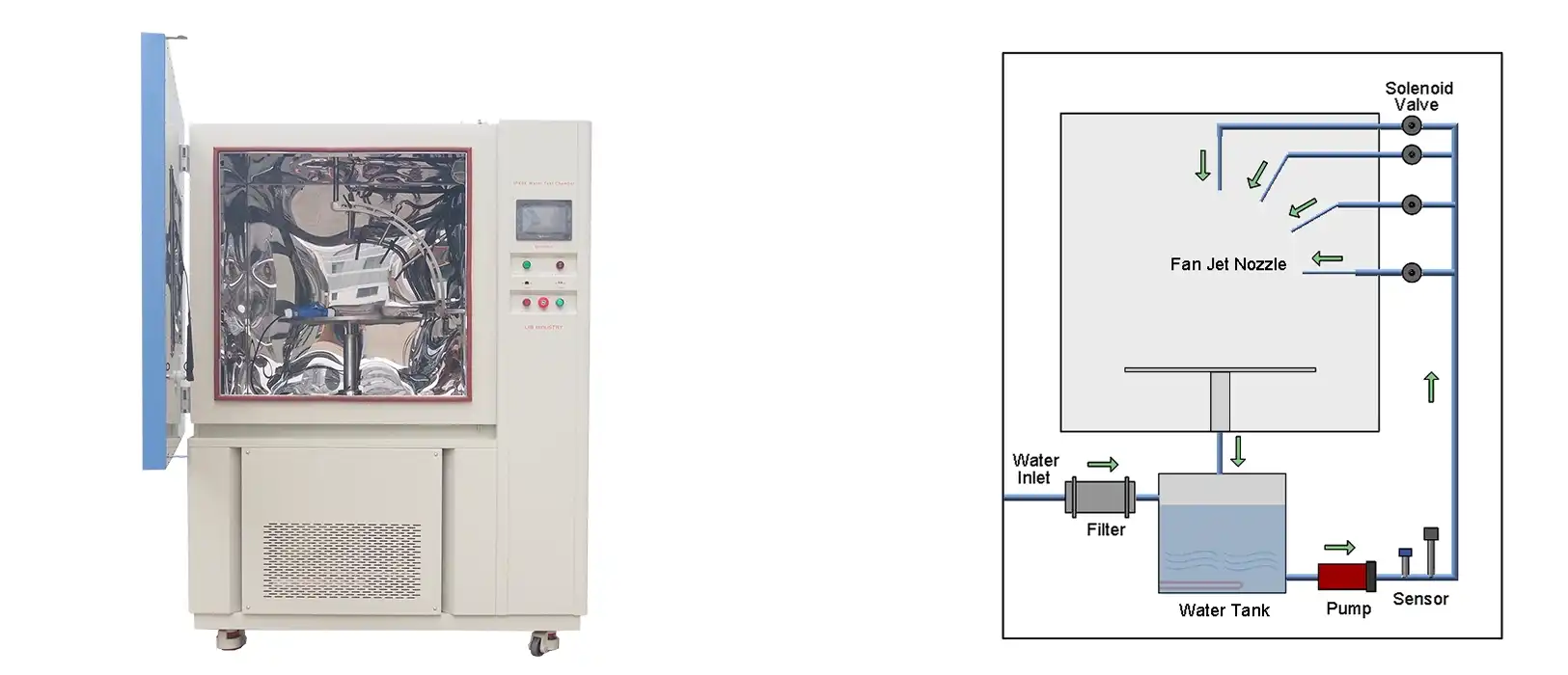

LIB Industry is a leader in providing high-quality IEC 60529 IPX9K equipment. Our equipment are designed to deliver precise, repeatable results, helping manufacturers ensure their products meet the highest water resistance standards. With features such as advanced water spray nozzles, a turntable that allows 360-degree exposure, and precise temperature control, LIB IEC 60529 IPX9K equipment ensures that your product is tested thoroughly. The advantages of equipment include:

Model: R9K-1200 Internal Dimensions (mm): 1000*1000*1000 Overall Dimensions (mm): 1300*1500*2030 Interior Volume (L): 1000 Water Spray Angle: 0°, 30°, 60°, 90° Water Spray Temperature: Ambient ~ +88℃ (Adjustable) Spray Nozzle Four, 30 Seconds each position Distance from Water Spraying to Specimens: 10~15 cm Water Pressure: 8000-10000 Kpa (Adjustable) Water Flow Rate: 14L-16L/min Testing Platform: Speed 5±1 r.p.m Testing Platform Height: 200-400 nm (Adjustable) Testing Platform Diameters: 600 mm

- High-Pressure Performance: Simulates water jets up to 100 bar, meeting the stringent requirements of the IPX9K test.

- Temperature Control: Capable of reaching temperatures up to 80 °C for accurate testing under thermal stress.

- Flexible Testing: Adjustable nozzles and turntables allow for comprehensive testing from all angles.

By choosing LIB's IEC 60529 IPX9K equipment, manufacturers can ensure their products are tested under the most extreme conditions, providing peace of mind to both producers and end users. For more information on how LIB's test chambers can support your business, contact us at: ellen@lib-industry.com.
