DI-1500 Dust Testing Machine
Capacity:800L/1000L/1500L/2000L and more
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Normal Wire Diameter: 50um
Nominal Width of a Gap Between wires:75um
Blowing Time:0 ~ 99H59M

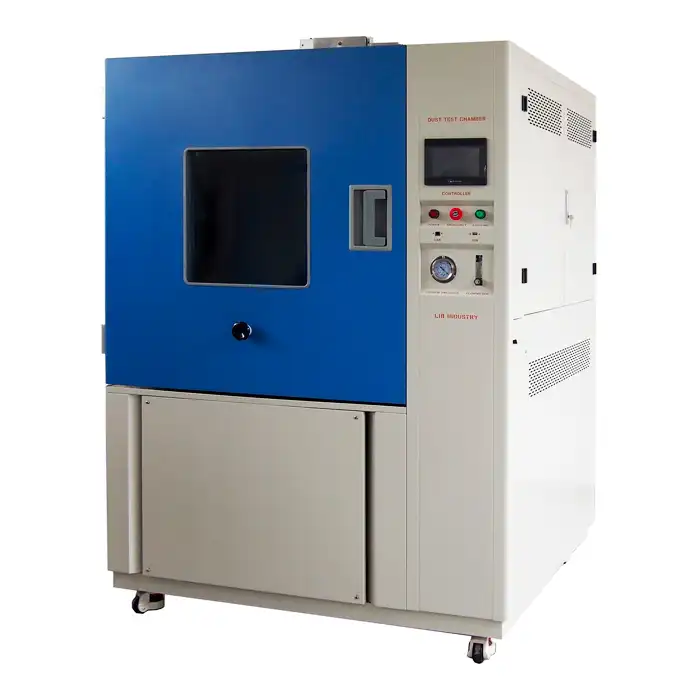

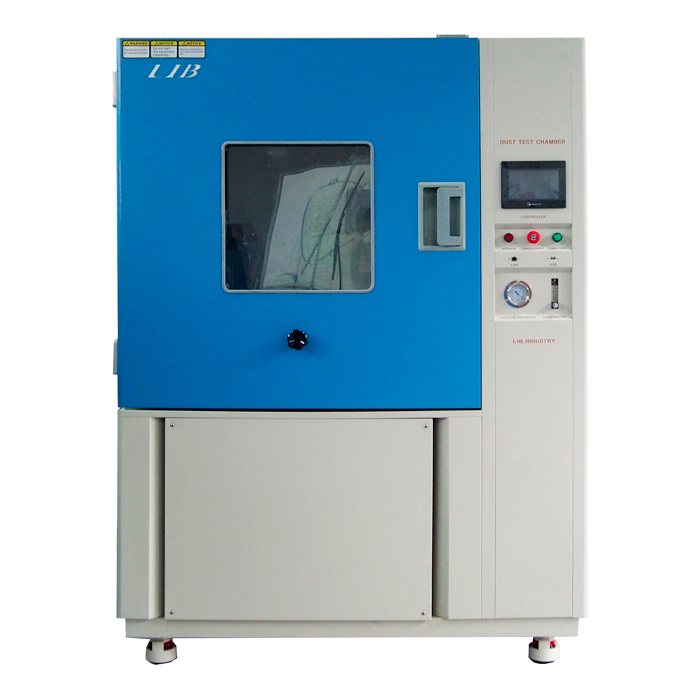

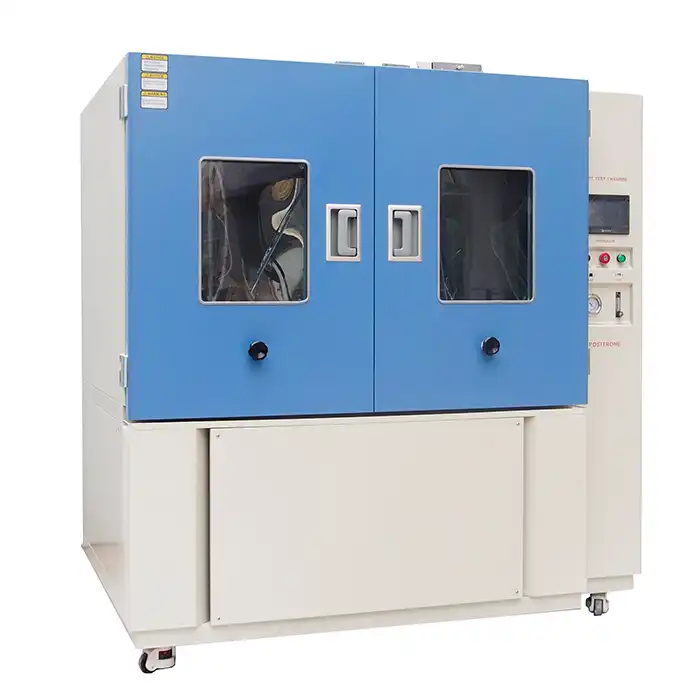

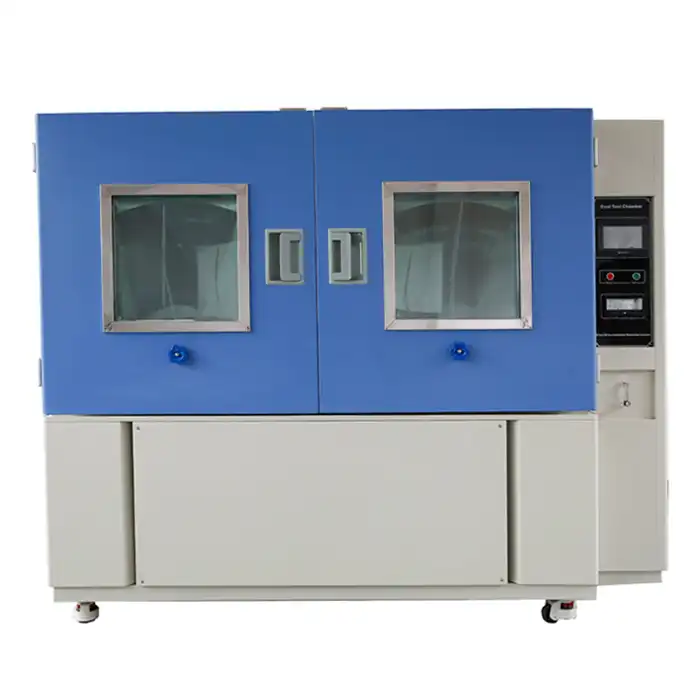

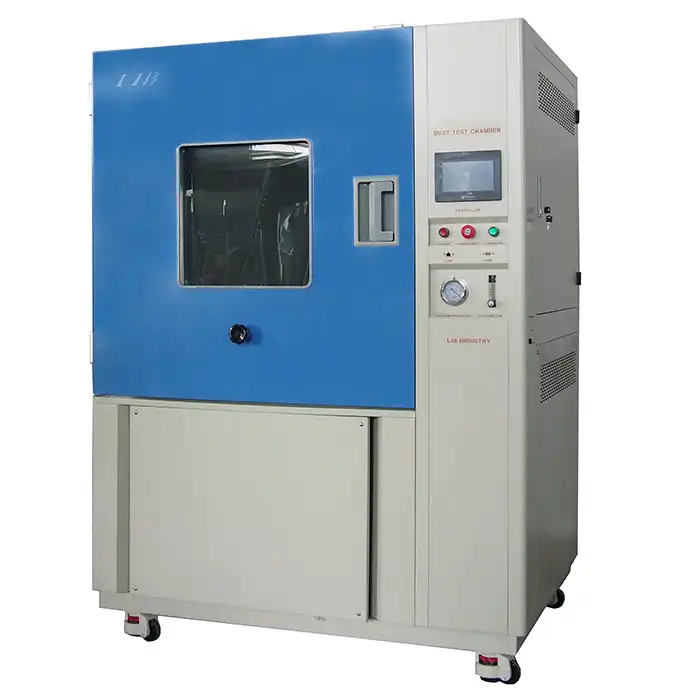

LIB Industry's DI-1500 Dust Testing Machine
LIB Industrial (LIB) is a professional manufacturer and supplier of DI-1500 Dust Testing Machine, providing various standard and customized environmental testing chambers for different industries. It simulates real-world conditions where dust and particles can accumulate and potentially affect the performance or durability of the tested items.
Technical Parameters:
Model | DI-1500 |
Internal Dimension (mm) | 1000*1500*1000 |
Overall Dimension (mm) | 1330*1950*1990 |
Useful Volume (L) | 1500 |
Temperature Range | Ambient ~ +50℃ |
Humidity Range | < 30% RH |
Normal Wire Diameter | 50um |
Nominal Width of a Gap Between wires | 75um |
Fight Time | 0 ~ 99H59M |
Blowing Time | 0 ~ 99H59M |
Specimen Power Outlet | Dust-proof socket 16A |
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Door Lock | Electromagnetic lock |
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection |
Exterior Material | A3 Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) |
Product Details:
|
|
|

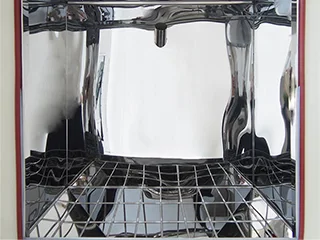

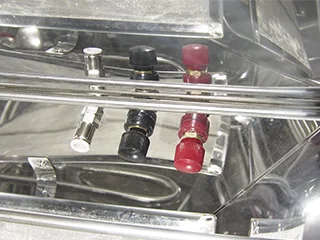

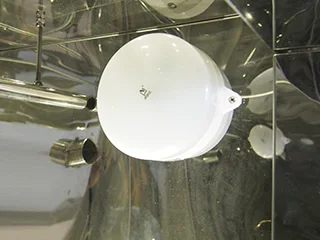

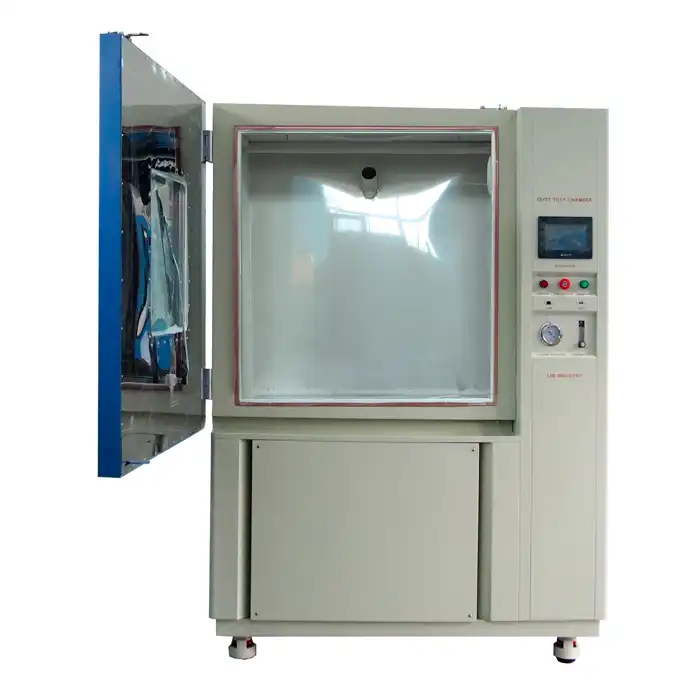

| Internal Power Supply A single-phase 16A internal power interface Supply electricity to test specimen inside of the workroom | Build-in lighting The built-in dustproof LED lighting inside the workroom Makes it clear to observe the test specimen. | Workroom The internal material is 304 stainless steel, mirror surface, rust-proof Standard configuration: sample rack |
More Details:
Brand: LIB Industrial
Type: Dust Environmental Testing Chamber
Material: Stainless Steel
Size: Standard and Customizable (800L to 2000L)
Temperature Range: RT+10°C to +80°C
Standard: IEC60529
DI-1500 Dust Testing Machine Applications:
●Electronics: DI-1500 Dust Testing Machine is extensively used to test electronic components such as circuit boards, sensors, and connectors for resilience to dust, ensuring optimal performance in diverse conditions.
●Automotive: Automotive parts and systems, including control units and sensors, undergo testing to guarantee functionality and longevity in dusty environments encountered on roads.
●Consumer Electronics: Products like smartphones, cameras, and wearables are subjected to dust testing to meet industry standards and enhance user satisfaction by ensuring prolonged durability.
●Industrial Machinery: it plays a crucial role in evaluating the dust resistance of machinery components, preventing potential malfunctions and prolonging equipment lifespan.
FAQ
1. What is it used for?
It is used to test the resistance of DI-1500 Dust Testing Machine to dust and particulate ingress. It assesses how well products can withstand exposure to dusty environments, ensuring their reliability and durability.
2. How does it work?
It operates by creating controlled dust environments. Products are placed inside the chamber, and dust is introduced in varying concentrations and particle sizes.
3. What capacity are provided?
Standard and custom models, 800L/100L/1500L and more.
