Mini environmental test chamber
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Temperature and Humidity System
Touch-screen programmble controller,Ethernet access
Safety options for testing lithium-ion batteries

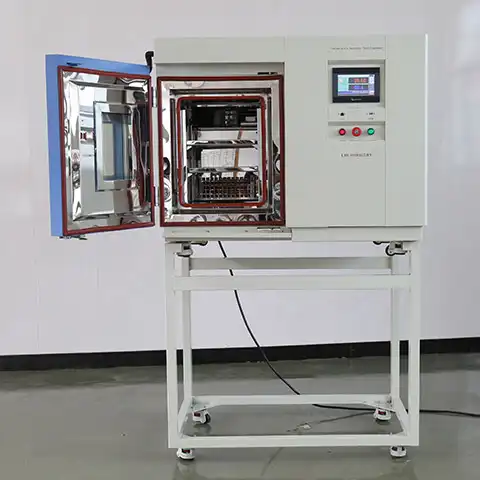

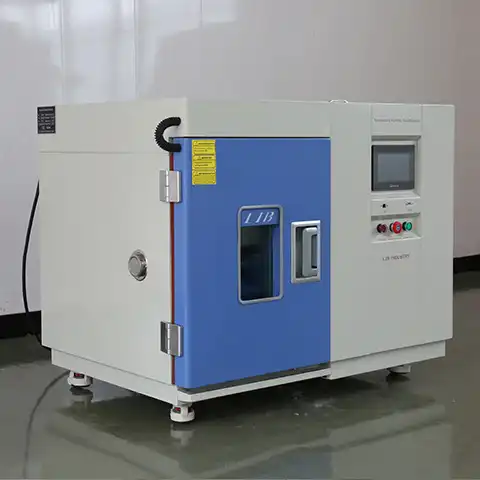

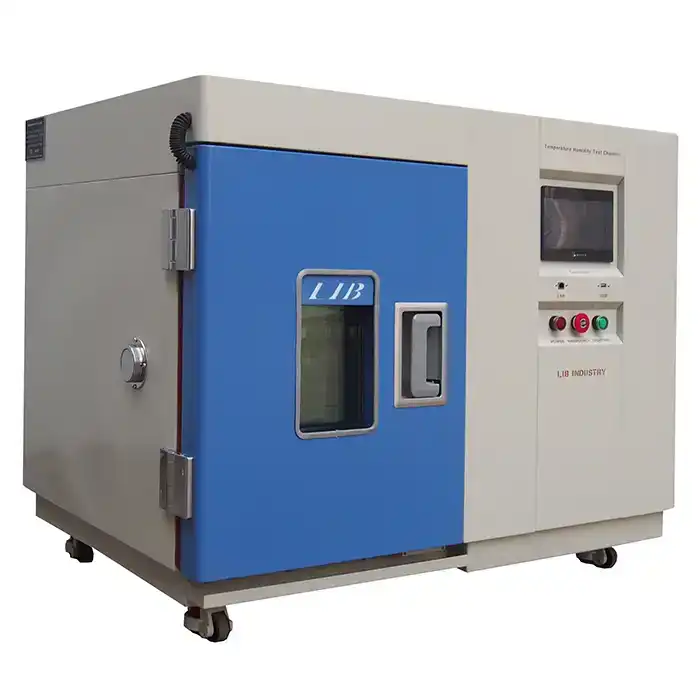

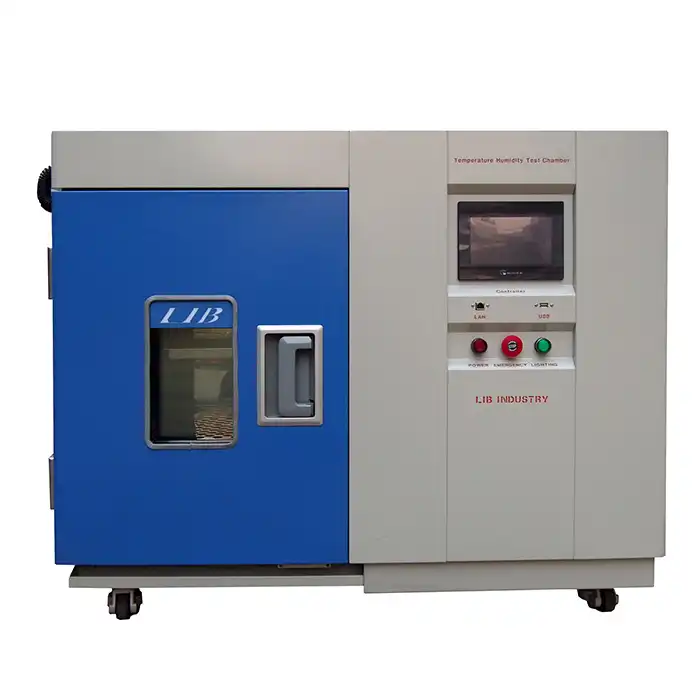

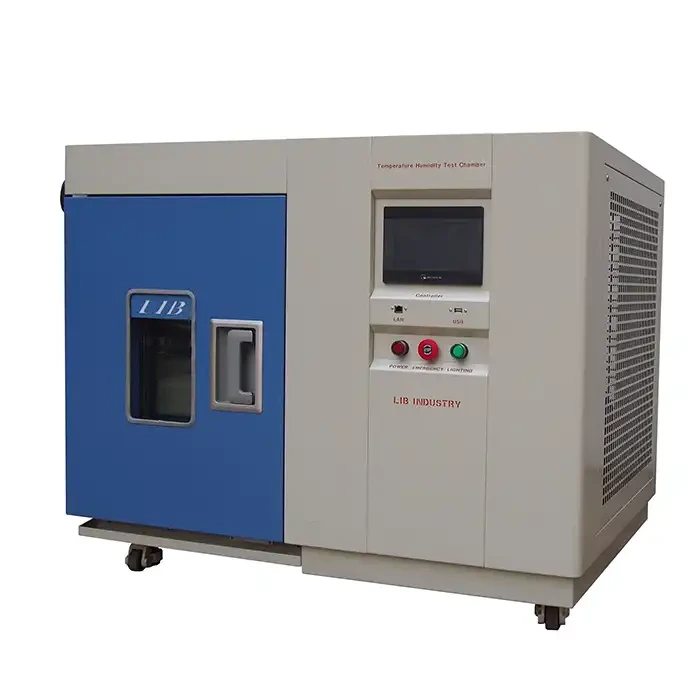

The LIB Industry's Mini environmental test chamber provides a compact, desktop solution for precise temperature testing and control. With a small footprint, it fits easily in tight spaces and delivers uniformity and stability across a wide temperature range.
The stainless steel interior and viewing window provide durability along with sample visibility. Mini environmental test chamber accommodates electronics, materials, pharmaceuticals, foods, and other test samples up to 50 liters. 50L and 80L available as standard models.
Technical Specifications
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details
|
|
|

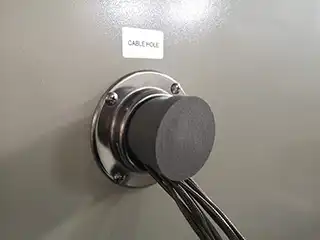

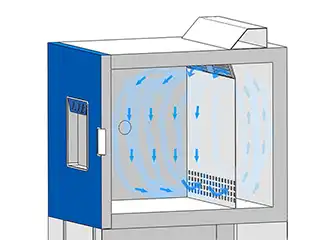

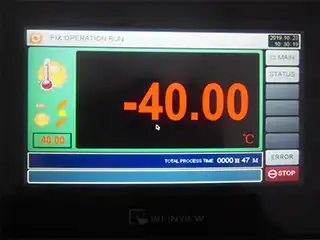

Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Cable hole A standard test hole with plugs The standard inner hole diameter is 50mm/100mm/200mm | Controller PID programmable color touch screen controller network connection computer. Can create120 programs 100 segment. |
|
|
Product Advantages
Precision Control: Ensures accurate and stable temperature conditions for testing sensitive equipment or materials.
Versatility: Adaptable for various industries such as electronics, automotive, pharmaceuticals, and more.
Customization: Available in different sizes and additional features to suit specific testing requirements.
Reliability: Built with high-quality materials and advanced technology for long-term, consistent performance.
FAQ:
Q: What temperature range does the mini environmental test chamber provide?
A: -40°C to +150°C with stability as precise as ±0.1°C.
Q: What chamber size do you recommend for my application?
A: Our team can help determine the optimal size based on your test samples and lab space.
Q: How long is your product warranty period?
A: We provide a 3-year long warranty.
