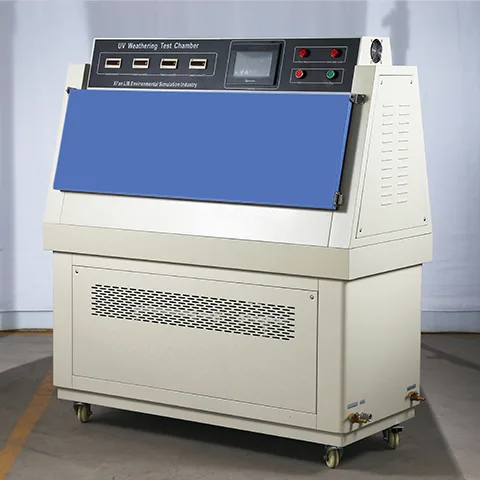

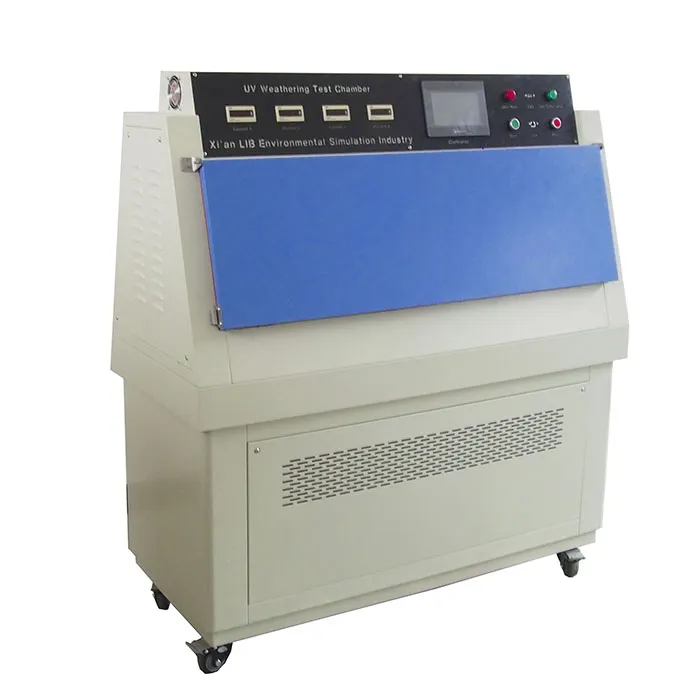

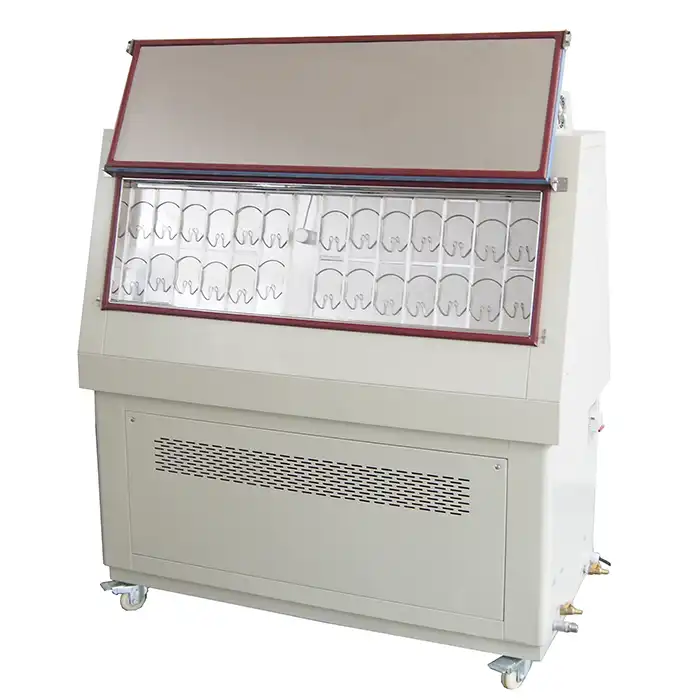

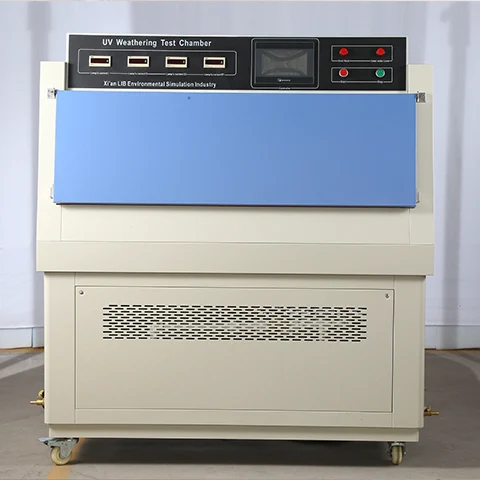

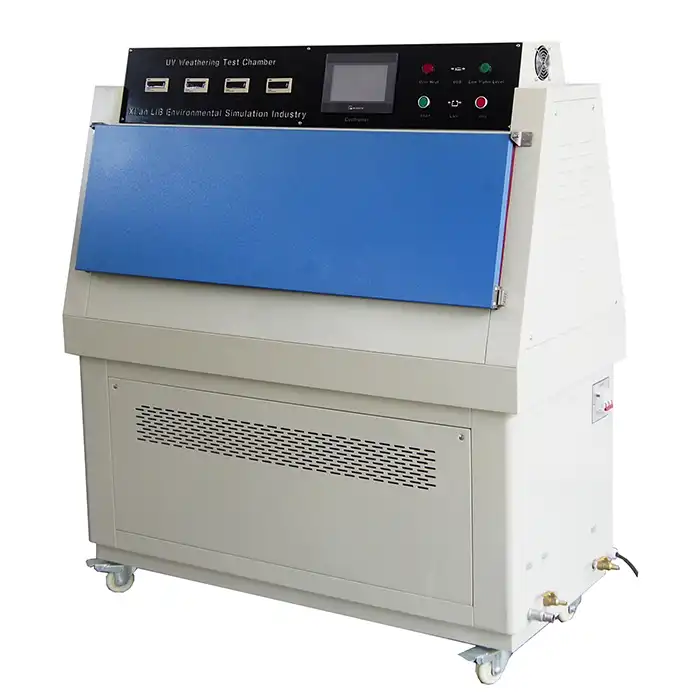

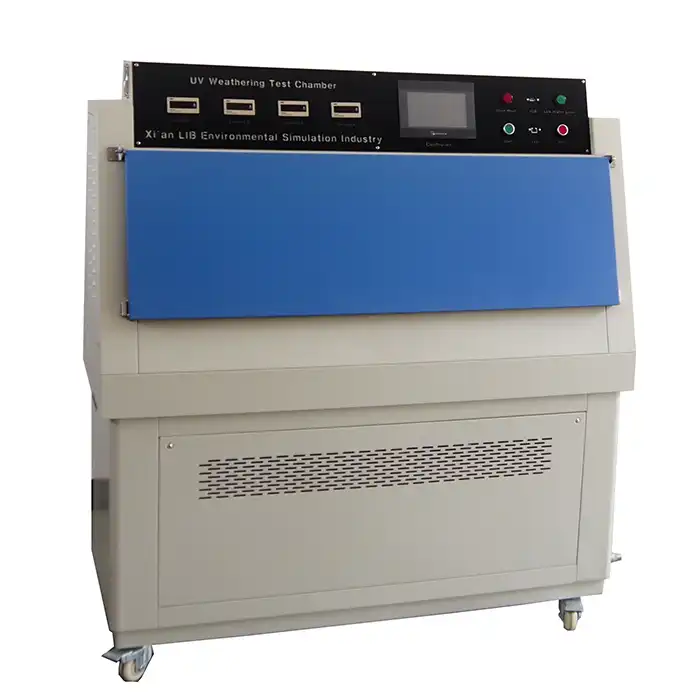

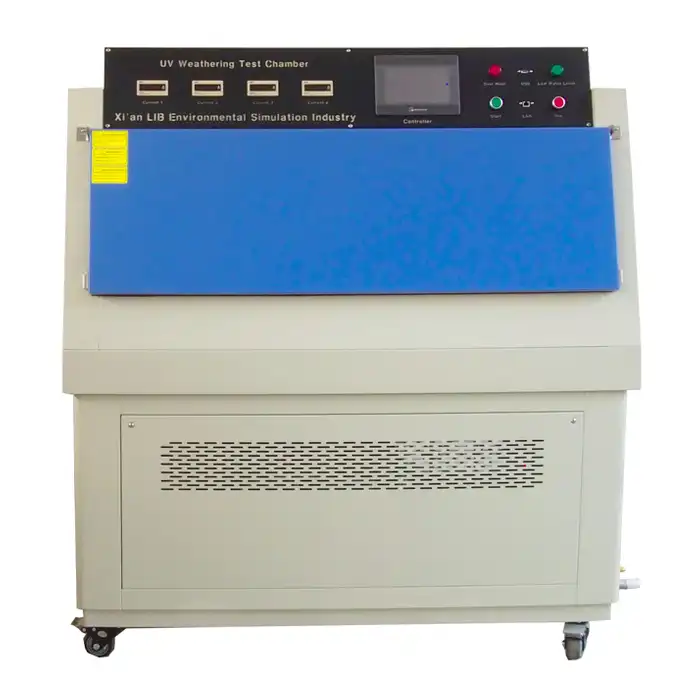

UVA313 UVB340 UV Weatherometer
Name: UV test chamber
Model:UV-SI-260
Specimen Holder Size(mm):75*150
Irradiation Source: Fluorescent UV lamps (8) - 40 W
Temperature Range:Ambient ～ 90 ℃ ±2℃
Bandwidth:290 ~ 400nm
LIB Industry's UVA313 UVB340 UV Weatherometer
LIB Industry offers UVA313 UVB340 UV Weatherometer, the chamber is equipped with UV lamps that emit light in the UV spectrum, simulating the effects of sunlight. These lamps are carefully calibrated to reproduce specific wavelengths and intensities of UV radiation.
It is designed to meet international standards for material testing ISO4892, ASTM G154.
Technical Specifications
Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 610*1330*1470 |
Specimen Holder Size(mm) | 75*150 |
Specimen Capacity | 56 Pieces |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400nm |
Irradiance Control | 0.3~20 W/㎡ |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Distance of Specimen and lamp | 50mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Product Details
|
|
|

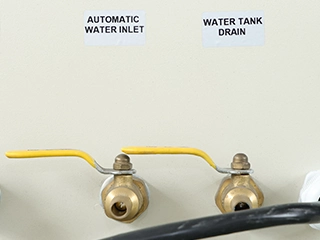

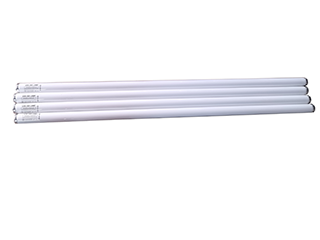

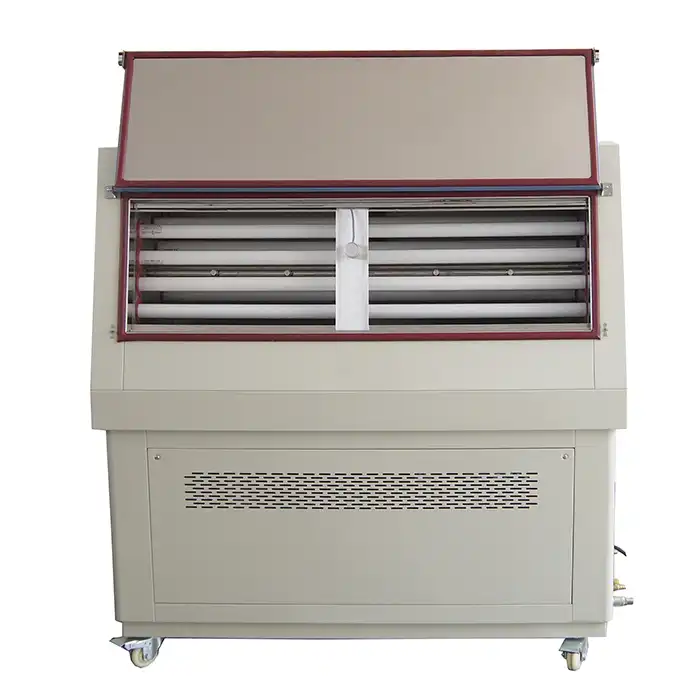

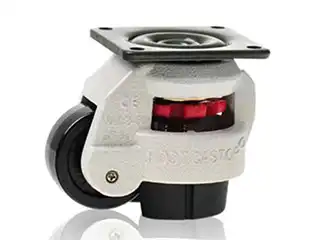

| Castors Install 4 castors for ease moving, and with brakes function. Caster height adjustable | Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Irradiation Source The chamber is equipped with total of 8 lamps, each 40W. Easy to change UV lamps |
|
|
Features
1. The lamp current display mainly displays the service life of the lamp, making it convenient for users to replace the lamp in time.
2. Achieve aging test in multiple environments such as temperature, humidity, ultraviolet light, water spray
3. Multiple languages available, including German, French, Russian, Spanish, Portuguese, Polish, Turkish, Korean, etc.
4. PC link, Ethernet connects to the computer to easy operation of the test chamber
5. SU304 stainless steel, corrosion resistant material
UVA313 UVB340 UV Weatherometer Application
●Automotive Industry:
UVA313 UVB340 UV Weatherometer is used in automotive interiors and exteriors for durability, colorfastness, and resistance to UV degradation. This includes components like dashboards, seats, and exterior coatings.
●Aerospace Industry:
Assessing the performance of materials used in aircraft components, ensuring they can withstand prolonged exposure to UV radiation during flight and when parked outdoors.
●Textiles :
Evaluating fabrics, dyes, and finishes for their resistance to fading and degradation caused by sunlight. This is crucial for outdoor textiles, clothing, and upholstery.
Plastics and Polymers:
Testing the UV stability of plastic materials, such as those used in outdoor furniture, piping, and construction materials.
FAQ
Q: What is the lifespan of the UV lamps?
A: The usable time is 1200 hours. After more than 1200 hours of exposure, the lamp needs to be replaced with a new one.
Q: Can this UVA313 UVB340 UV Weatherometer simulate specific weather conditions?
A: Yes, the chamber can replicate various weather conditions, including high UV exposure and controlled humidity.
