uv aging machine
Irradiation Source: Fluorescent UV lamps (8) - 40 W
Temperature Range:Ambient ～ 90 ℃ ±2℃
Bandwidth:290 ~ 400nm
Irradiance Control:0.3~20 W/㎡
Water Spray Cycle:1~9999H59M (Adjustable)
Distance of Specimen and lamp:50mm
LIB Industry UV aging machine Manufacturer & Supplier

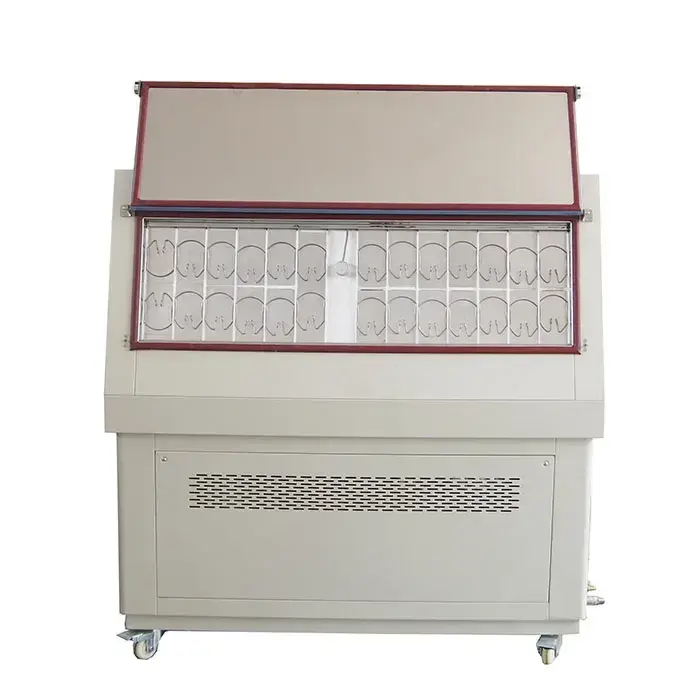

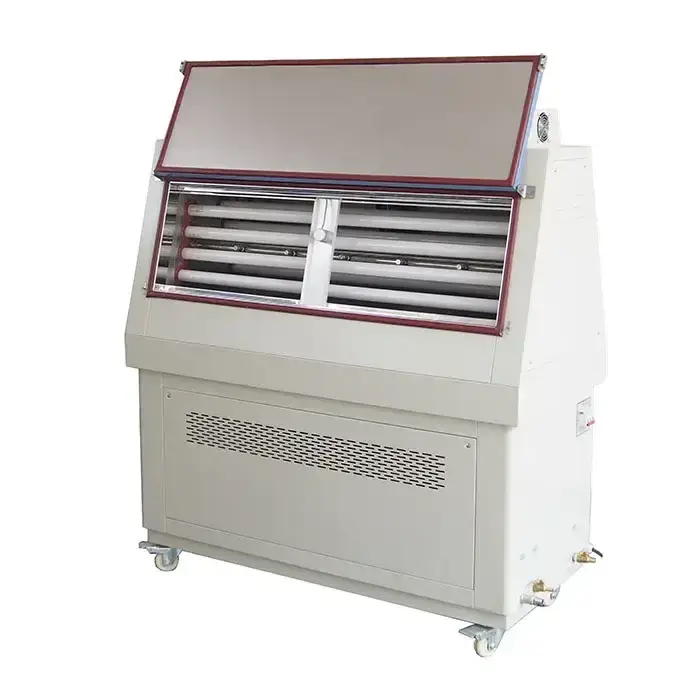

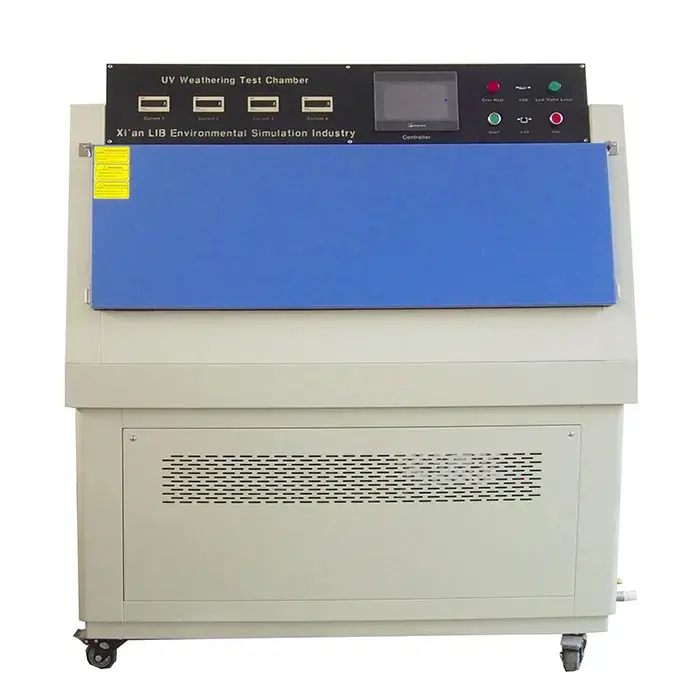

LIB Industry introduces uv aging machine designed meticulously to assess material durability against UV exposure. The UV Aging Test Chamber employs fluorescent ultraviolet lamps to simulate the effects of natural sunlight, conducting accelerated weathering tests on materials.
LIB Industry's UV testing machine uses advanced Q lab to ensure the stability of the light source. Lamp life is long, the standard life is 5000 hours.
Product Standards & Technical Specifications
Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 610*1330*1470 |
Specimen Holder Size(mm) | 75*150 |
Specimen Capacity | 56 Pieces |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400nm |
Irradiance Control | 0.3~20 W/㎡ |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Distance of Specimen and lamp | 50mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Product Details
|
|
|
| Irradiation Source The chamber is equipped with total of 8 lamps, each 40W. Easy to change UV lamps | Controller PID programmable color touch screen controller Network connection computer. | Water Spraying Equipped with ten nozzles, the diameter of the nozzle is 0.5mm, the settlement is 0.8 ~ 1.0mm / 80cm2 / H |
|
|
Enforceable standards
The most commonly used international standards for UV accelerated testing include ASTM G154, ISO 4892-2, and SAE J2020. These standards are widely used in various industries such as automotive, aerospace, construction, and packaging.
ASTM G154 is a standard test method for operating fluorescent light apparatus for UV exposure of nonmetallic materials. This standard is used to determine the resistance of materials to artificial sunlight exposure, especially for weathering and aging tests.
ISO 4892-2 is another commonly used standard for UV accelerated testing. This standard specifies the methods for exposure of plastics to UV radiation, as well as the criteria for evaluating the results.
SAE J2020 is a standard test method for accelerated exposure of automotive exterior materials using a controlled irradiance water-cooled xenon arc apparatus. This standard is relevant for automotive manufacturers and suppliers who need to evaluate the durability of exterior materials such as paints, coatings, and plastics.
