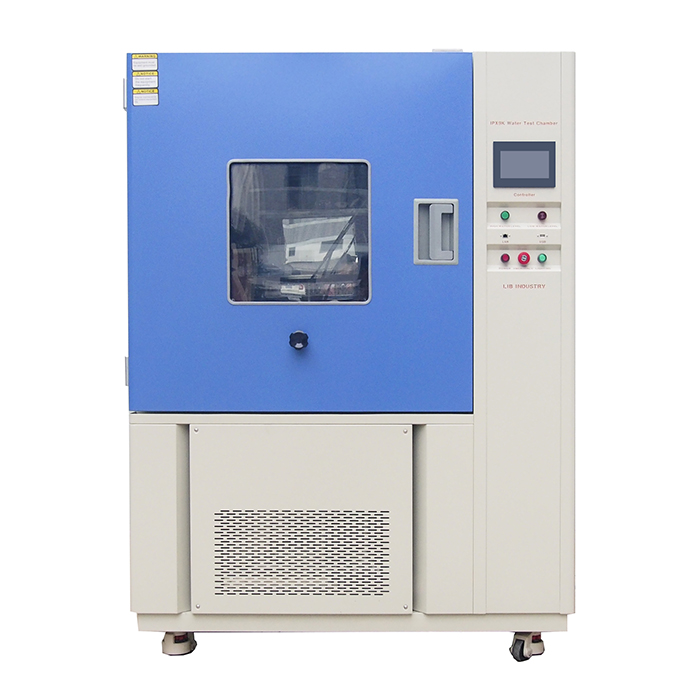

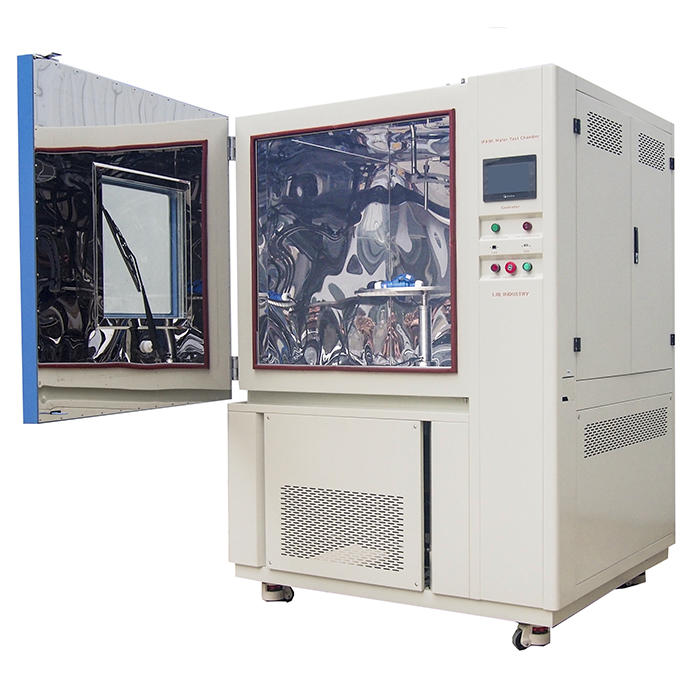

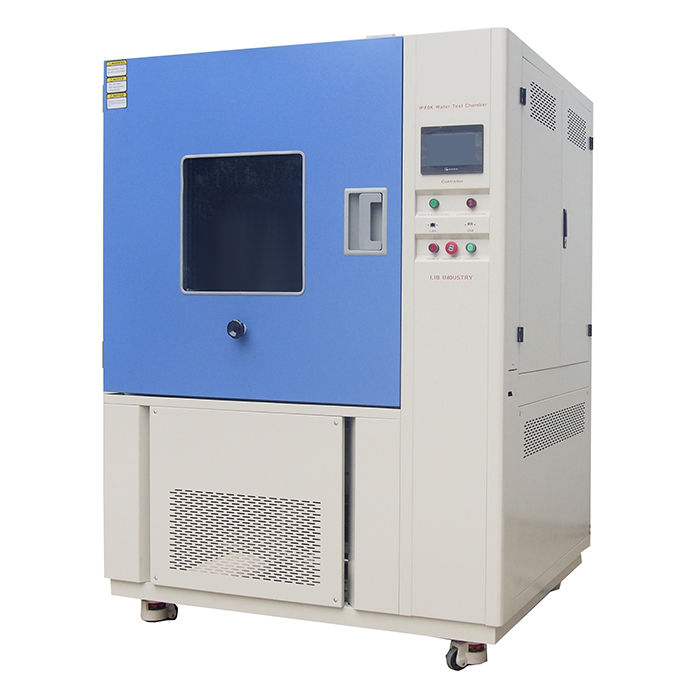

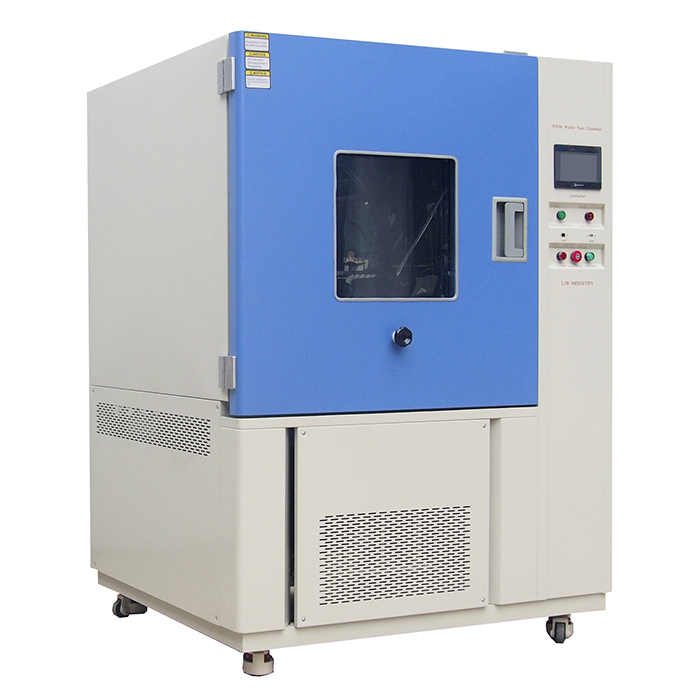

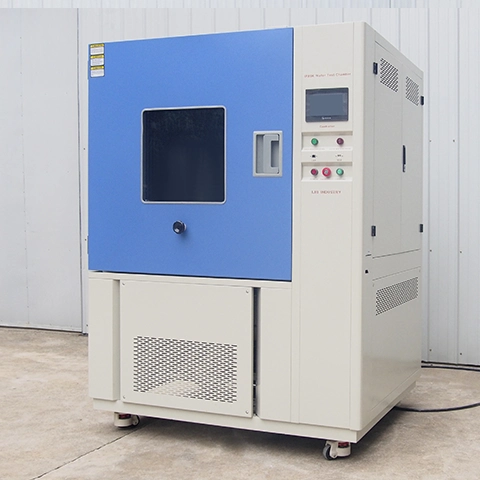

R-1200C IPX4 Test Equipment
Name: vehicle rain test chamber
Model: R-1200C
Capacity: 800L/1000L/1500L/2000L and more
Standard: IEC 60529, ISO20653
Drip Tray Size: 800*800
Spraying Hole Diameter: φ0.4mm
R-1200C IPX4 Test Equipment Manufacturer & Supplier
LIB Industry R-1200C IPX4 Test Equipment is a specialized testing apparatus designed to simulate rain and evaluate the water-resistance capabilities of vehicles or specific automotive components. This controlled environment allows for assessing how vehicles endure and repel water ingress under various rainfall intensities and conditions.
Our IPX4 Test Equipment complies with international standards such as ISO 20653 and SAE J575, ensuring precise and reliable testing outcomes. It guarantees the validation of vehicle components and systems in simulated heavy rain conditions.
Technical Specifications:
Model | R-1200C |
Internal Dimensions (mm) | 1300*1350*1370 |
Overall Dimensions (mm) | 1540*1820*2200 |
Useful Volume (L) | 2400 |
Oscillating Tube Radius | 600mm |
Drip Tray Size | 1000*1000 |
Spraying Hole Diameter | φ0.4mm |
Hole Spacing | 50 mm |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） |
Turntable Rotation Speed | 1r/min (Adjustable speed) |
Water Pressure Control | Flow meter |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Product Details
|
|
|

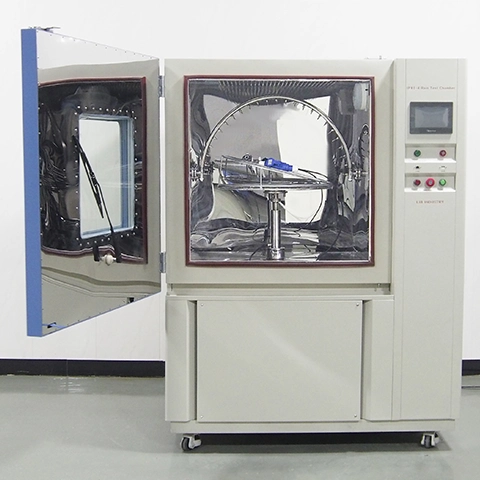

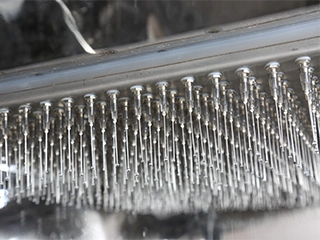

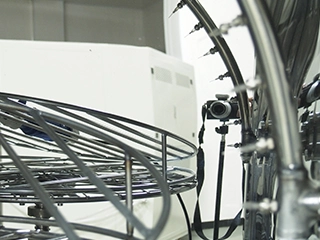

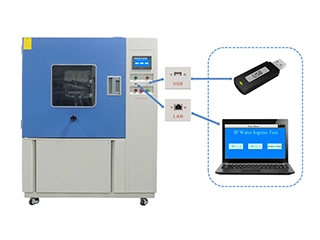

| Drip Tray The drip tray is made of stainless steel Drip holes are evenly distributed | Oscillating Tube Oscillating tube is made of stainless steel. Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180° | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Working Principles:
1. Preparation: The R-1200C IPX4 Test Equipment under testing are placed inside the rain test chamber, ensuring proper positioning for exposure to simulated rainfall.
2. Rain Simulation: The rain simulation system is activated to create specific rainfall conditions, varying in intensity and patterns, as required for the test.
3. Observation and Monitoring: The vehicle or components are observed for any signs of water ingress or penetration. Sensors and monitoring systems track water accumulation or leaks.
4. Evaluation: After the designated duration and rain intensity, the vehicle or components are inspected for water ingress, and the results are assessed against predefined standards.
Application:
●Automotive Industry: Used to test cars, trucks, buses, and specific components like doors, windows, sunroofs, and electronic systems for water resistance.
●Quality Control Processes: Incorporated in manufacturing lines to ensure consistent water-resistance levels across vehicle models or components.
●Research and Development: Provides insights for improving vehicle design and materials to enhance water resistance in future models.
FAQ:
Q: What standards does the R-1200C IPX4 Test Equipment comply with?
A: The chamber adheres to international standards such as ISO 20653 and SAE J575, ensuring accurate rain simulation testing.
Q: Can this chamber accommodate various vehicle sizes?
A: Yes, it can be customized to accommodate different vehicle sizes for comprehensive testing.
