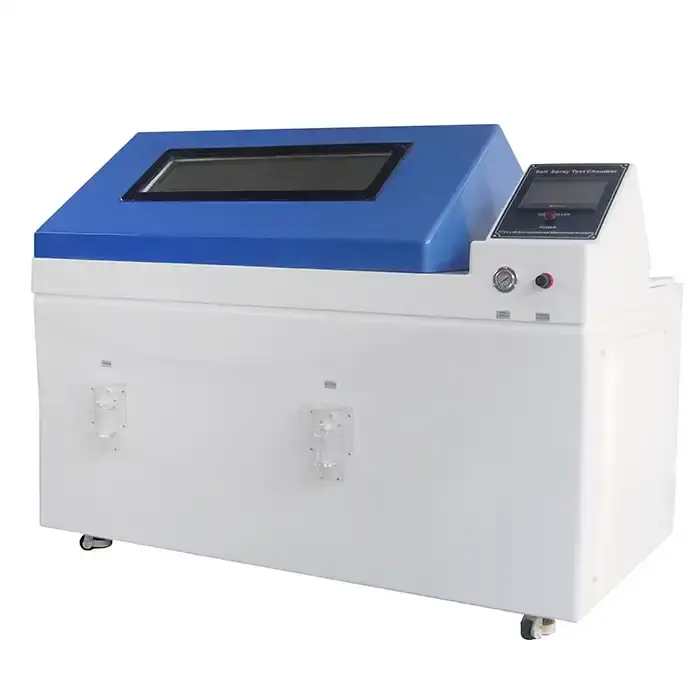

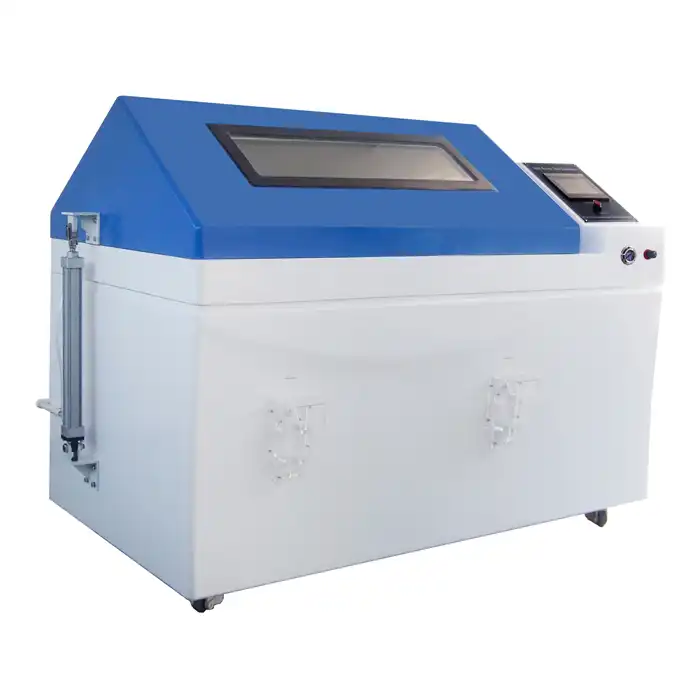

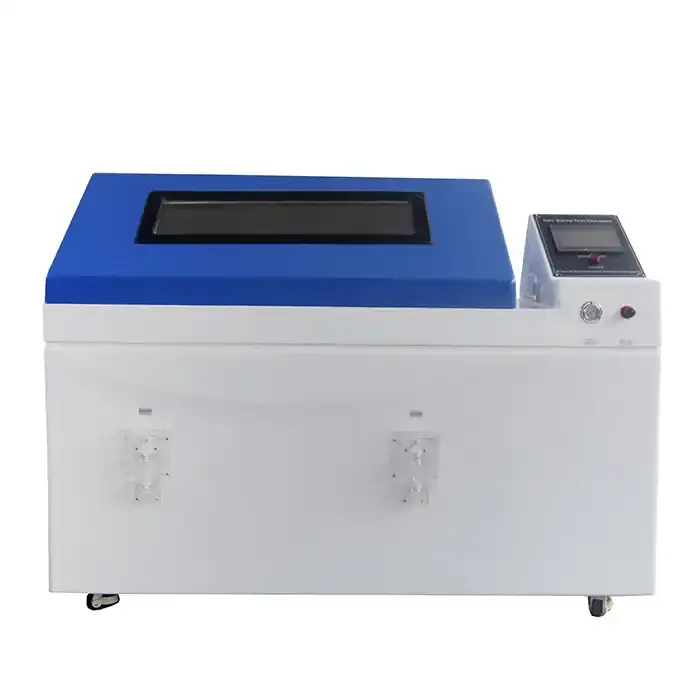

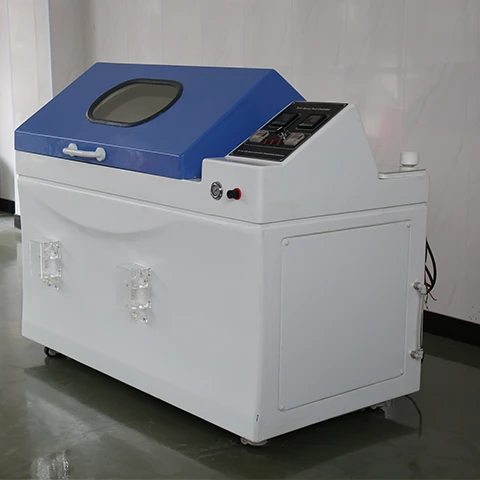

Salt Fog Test Equipment
Temperature Range:Ambient: ～ +60 ℃
Humidity Range:95% ~ 98% RH
Salt Fog Deposition:1～2ml / 80cm2 · h
Spray Type:Continuous / Periodic
Materials:Glass fiber reinforced plastics
Standard:ASTMB117, ISO9227

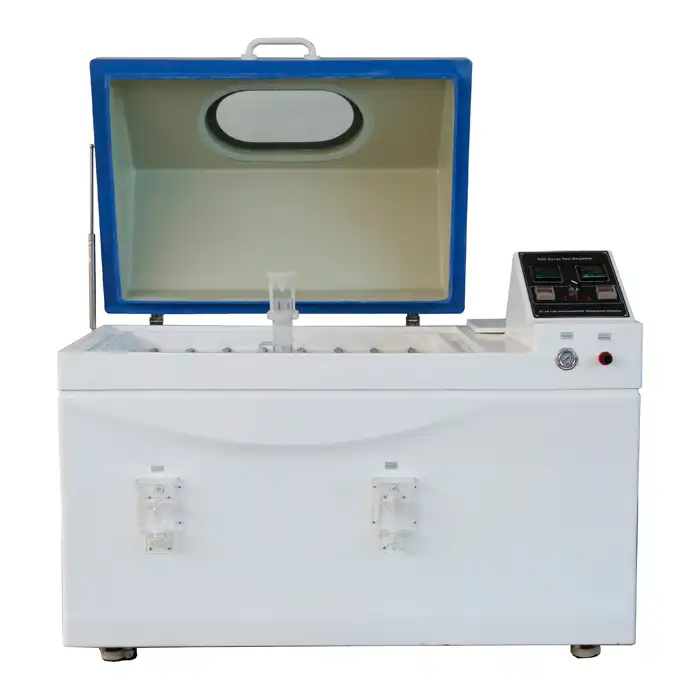

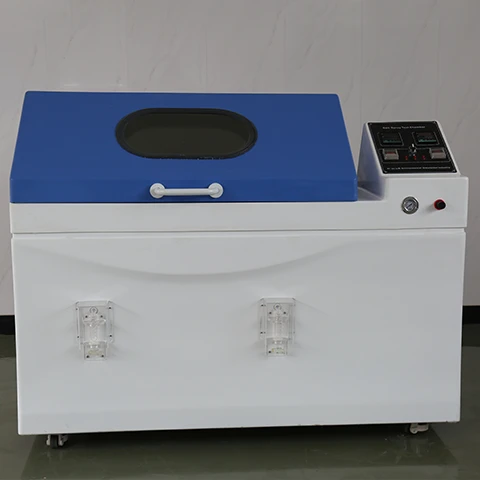

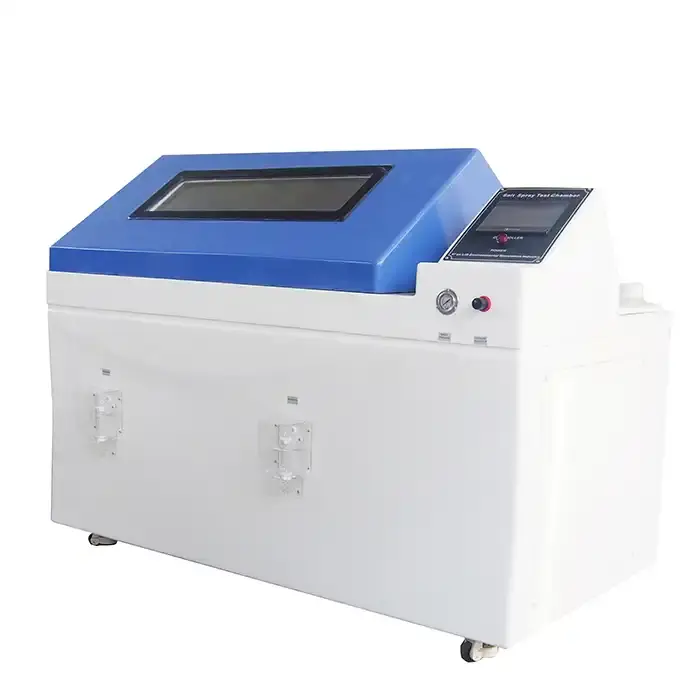

Salt Fog Test Equipment Manufacturer & Supplier
LIB's Salt Fog Test Equipment is designed to meet the rigorous demands of corrosion testing in various industries. Our Salt Fog Test machine is constructed with glass fiber reinforced plastics. It is equipped PID control to achive continuous or cycle corrosion test.
Product Range
We offer a complete range of salt fog chambers and corrosion test equipment to meet various laboratory and industry requirements:
Basic Salt Spray Chambers - For continuous salt fog exposure testing
Cyclic Corrosion Test Chambers - For programmable cyclic salt fog/dry testing
Walk-in and Drive-in Chambers - Large chambers for automotive parts testing
Technical Specifications:
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||

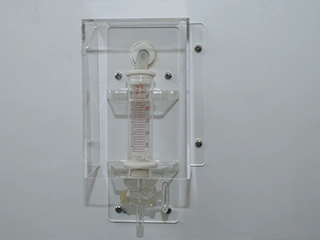

Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||

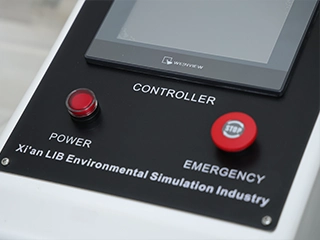

Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|

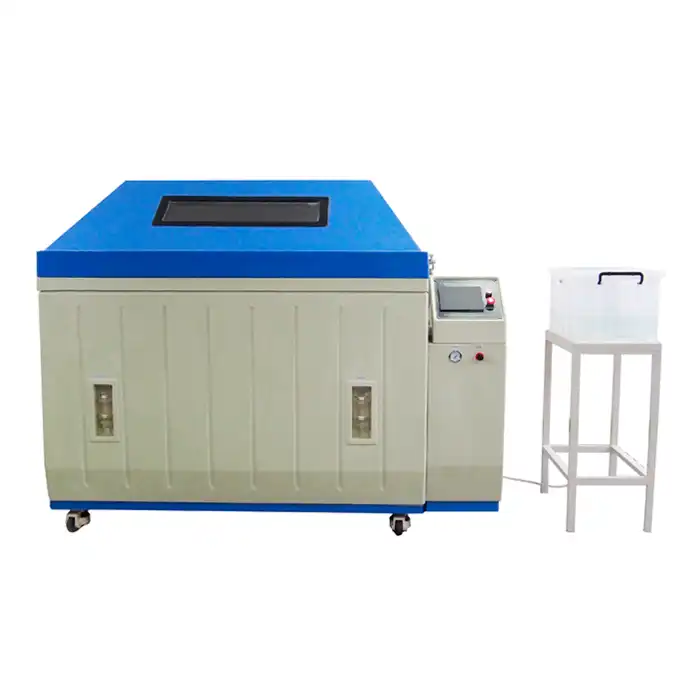

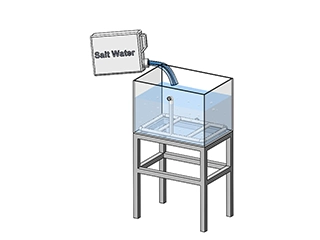

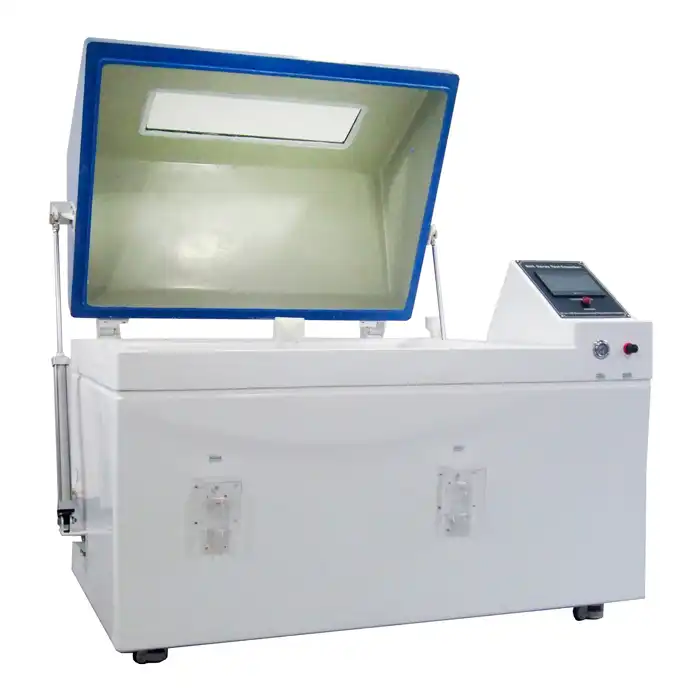

| Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even | Pneumatic Open/Close Lid Small salt spray chamber manually open the lid large salt spray chambers using pneumatic mode | Salt Spray Device Spray tower is adjustable in height and spray volume to meet different test standards, resistant to high temperatures, corrosion, and clogging |
|
|
Product Features
- Corrosion-resistant construction
- Precise and reliable testing conditions
- User-friendly interface for easy operation
- Customizable options for specific testing needs
- Robust design for long-term durability
- Efficient and consistent performance
Applications:
Ideal for industries such as automotive, aerospace, marine, and electronics, our Salt Fog Test Equipment is essential for assessing the durability of materials and coatings in corrosive environments.
●Automotive - Salt spray testing is used to assess corrosion resistance of vehicle body panels, wheels, brake parts and other components. This ensures durability against road salts, ocean air and other real-world exposure.
●Aerospace - Testing of aircraft wings, fuselages and engine parts made from aluminum, steel and other alloys for stress corrosion and material performance.
●Electronics - PCBs, connectors, casings and other electronics undergo salt fog exposure to evaluate susceptibility to corrosive humid/salty environments.
●Paints and Coatings - Evaluating protective performance of different industrial and consumer paints/coatings used on metal structures, pipelines, marine vessels etc.
●Building Materials - Testing corrosion resistance of building panels, hardware, aluminum extrusions, guard rails and other structures.
The Importance of Salt Fog Test Equipment:
Corrosion testing: Salt fog test equipment is primarily used to simulate and accelerate the effects of corrosion on various materials and coatings. It helps identify the susceptibility of materials to corrosion and evaluate the performance of protective coatings.
Quality control: Salt fog testing is an essential part of quality control processes for manufacturers. It ensures that products and materials meet industry standards and specifications, especially when it comes to corrosion resistance.
