UV irradiation chamber
Irradiation Source:Fluorescent UV lamps (8) - 40 W
Temperature Range:Ambient ～ 90 ℃ ±2℃
Bandwidth:290 ~ 400nm
Specimen Holder Size(mm):75*150
Specimen Capacity:56 Pieces
Black Panel Temperature (BPT): 35 ～ 80 ℃

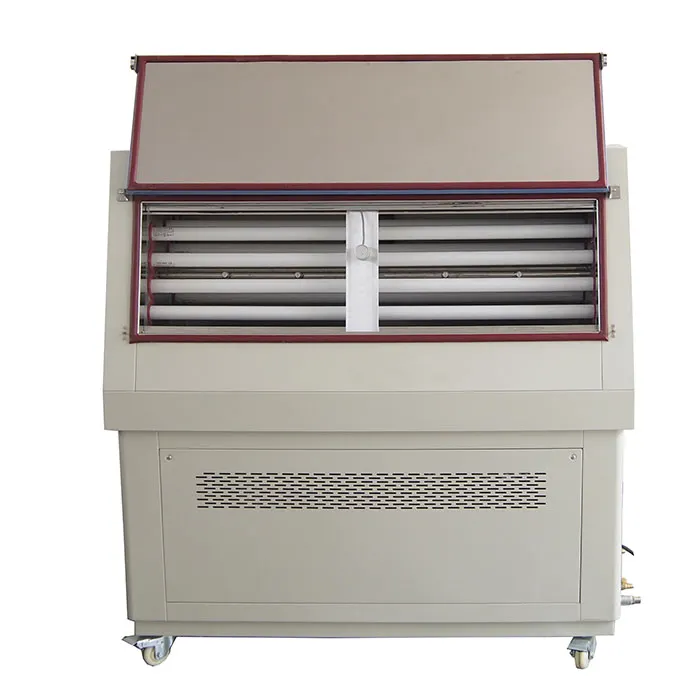

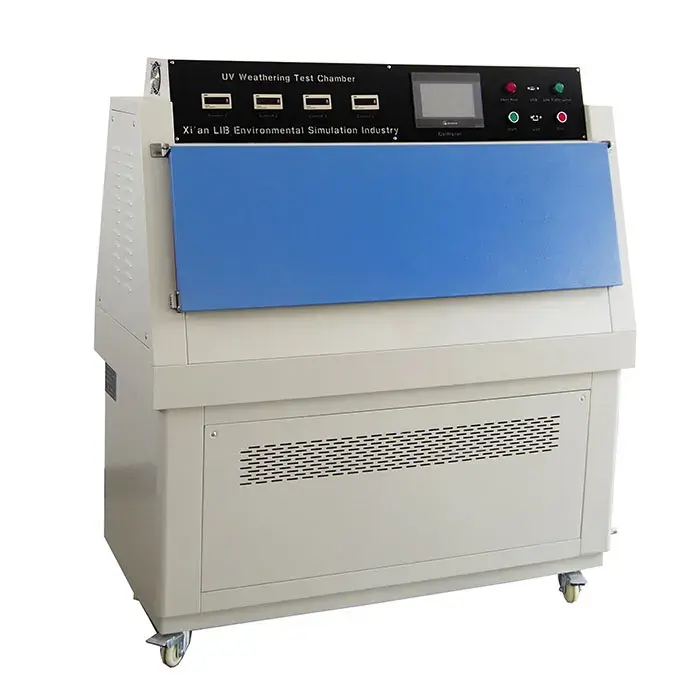

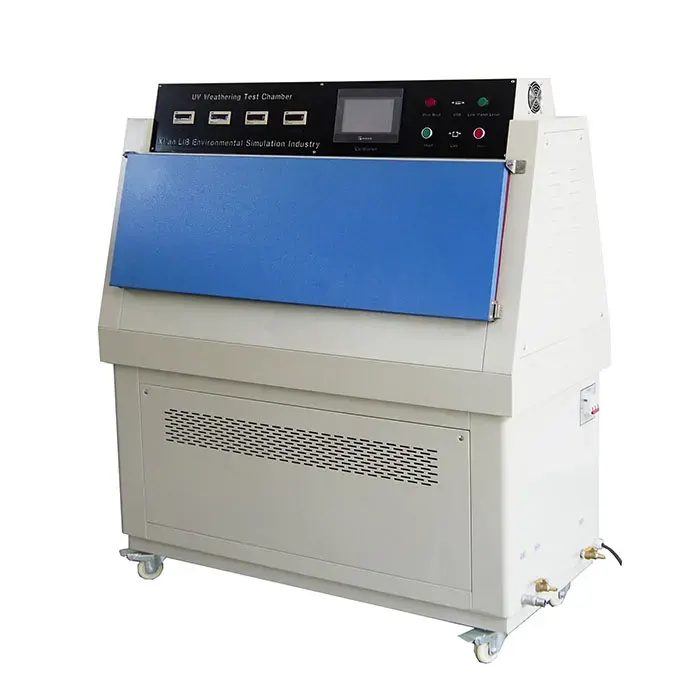

UV irradiation chamber Manufacturer & Supplier
The UV irradiation chamber is equipped with a UV light source, often in the form of specialized UV lamps. These lamps replicate the UV component of sunlight, allowing for accelerated testing of materials that are sensitive to UV radiation.
Test samples, which can be materials or finished products, are placed within the UV chamber to undergo exposure to the simulated weathering conditions. The exposure can be controlled and monitored to replicate specific environmental scenarios.
Technical Specifications
Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 610*1330*1470 |
Specimen Holder Size(mm) | 75*150 |
Specimen Capacity | 56 Pieces |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400nm |
Irradiance Control | 0.3~20 W/㎡ |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Distance of Specimen and lamp | 50mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Product Details
|
|
|
| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Water Spray Water spray pipe is equipped with nozzles Simulates the outdoor moisture to the material | Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing |
|
|
UV irradiation chamber Features
1. The lamp current display mainly displays the service life of the lamp, making it convenient for users to replace the lamp in time.
2. UV Weathering Test Chamber achieve aging test in multiple environments such as temperature, humidity, ultraviolet light, water spray
3. Multiple languages available, including German, French, Russian, Spanish, Portuguese, Polish, Turkish, Korean, etc.
4. PC link, Ethernet connects to the computer to easy operation of the test chamber
5. SU304 stainless steel, corrosion resistant
UV irradiation chamber Application
●Automotive Industry:
Assessing the durability and color stability of automotive components, such as exterior paints, interior materials, and various plastic and rubber parts exposed to sunlight.
●Aerospace Industry:
Testing materials used in aircraft components to ensure they can withstand prolonged exposure to UV radiation, temperature variations, and other environmental factors.
●Coatings and Paints:
Evaluating the resistance of coatings and paints used in architectural applications, outdoor structures, and industrial equipment to UV degradation and weathering.
●Textiles and Apparel:
Testing fabrics, dyes, and finishes for their resistance to fading and degradation caused by exposure to sunlight, moisture, and temperature variations.
FAQ
Q: How often should UV lamps be replaced?
A: The usable time is 1200 hours. After more than 1200 hours of exposure, the lamp needs to be replaced with a new one.
Q: Can this UV Weathering Test Chamber simulate specific weather conditions?
A: Yes, the chamber replicates various weather conditions, including high UV exposure and controlled humidity.
