corrosion test equipment
Temperature Range:+10 ℃ ～ +90 ℃
Humidity Range:30% ~ 98% RH
Temperature Deviation:± 2.0 ℃
Humidity Deviation:+2%, -3%
Salt Fog Deposition:1～2ml / 80cm2 · h
Cooling system Mechanical compression refrigeration system
- Product Description

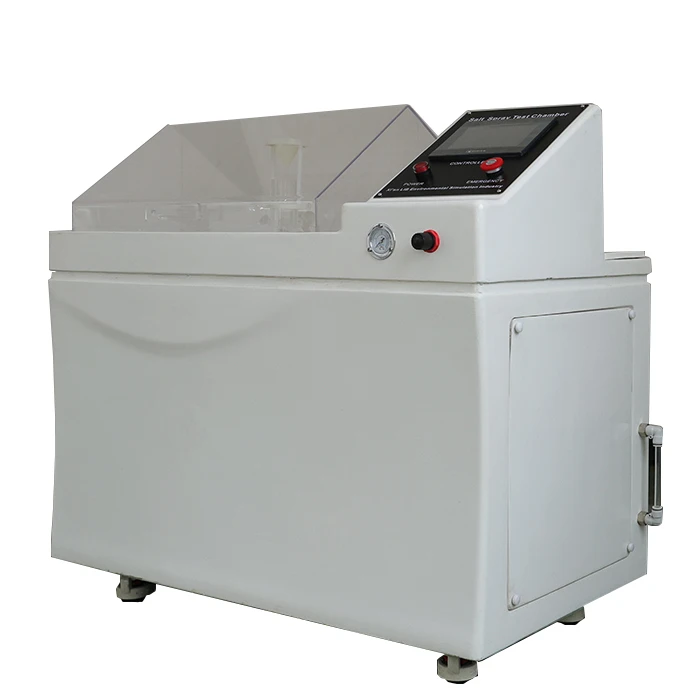

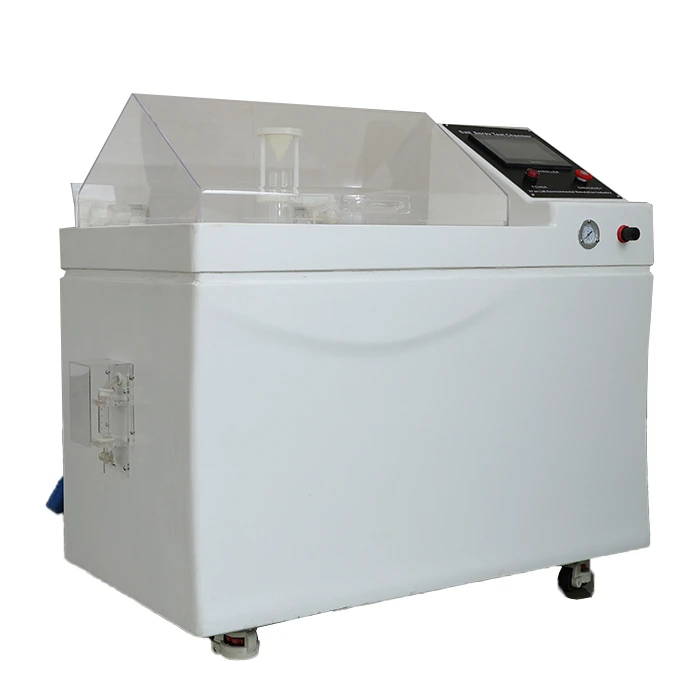

Corrosion Test Equipment Introduction
LIB Industry corrosion test equipment, is the testing equipment used to simulate and evaluate the corrosion resistance of materials and coatings. It creates a controlled environment where a saline solution (saltwater) is atomized and sprayed onto the test samples to accelerate the corrosion process.
The test samples, which can be metals, coatings and paint are placed inside the cabinet and exposed to the salt fog for a predetermined period of time.
The corrosion test equipment is designed to evaluate the rust-resistant properties of parts that have undergone surface treatments such as electroplating, coating, and anodizing. By using a mist of salt water to accelerate corrosion, this tester can quickly assess the rust-proof capabilities of specimens. It is widely used in industries such as hardware, screws, and electroplating, as well as in research organizations.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|
| Controller Network connection computer. Language can be selected, English/French/Spanish/German/Russian | Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions |
|  |
Test Standard
Neutral salt spray corrosion standards are important in ensuring the quality and longevity of products that are subject to harsh environmental conditions. There are a variety of standards that are commonly implemented to test the corrosion resistance of materials in a neutral salt spray environment.
One widely used standard is the ASTM B117 Standard Practice for Operating Salt Spray (Fog) Apparatus, which provides guidelines for the operation and use of salt spray fogging equipment. This standard outlines the procedure for preparing test specimens, loading them into the test chambers, and operating the equipment to ensure accurate and repeatable results.
Another commonly used standard is the ISO 9227 Corrosion tests in artificial atmospheres - Salt spray tests, which specifies the general principles of neutral salt spray testing and the necessary equipment and materials for conducting these tests.
The JIS Z 2371 Testing methods for resistance to salt spray corrosion is a Japanese standard that outlines the testing procedures for salt spray corrosion resistance.
FAQ
Q: What is the typical test duration in the corrosion test equipment?
A: The test cycle duration is programmable and can extend up to 2000 hours, simulating prolonged exposure to corrosive environments.
Q: Can this salt fog tester accommodate samples of different sizes and materials?
A: Yes, the salt spray test machine can accommodate multiple samples of varying sizes and materials for comprehensive testing.
