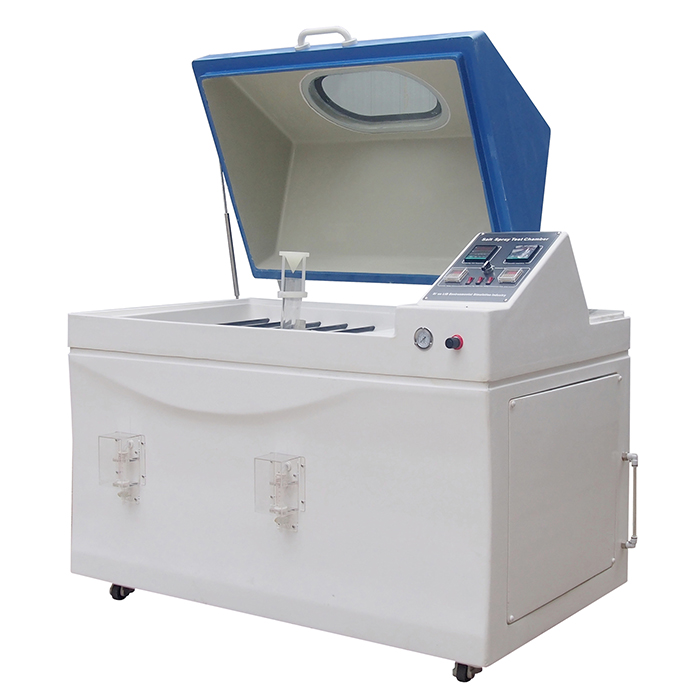

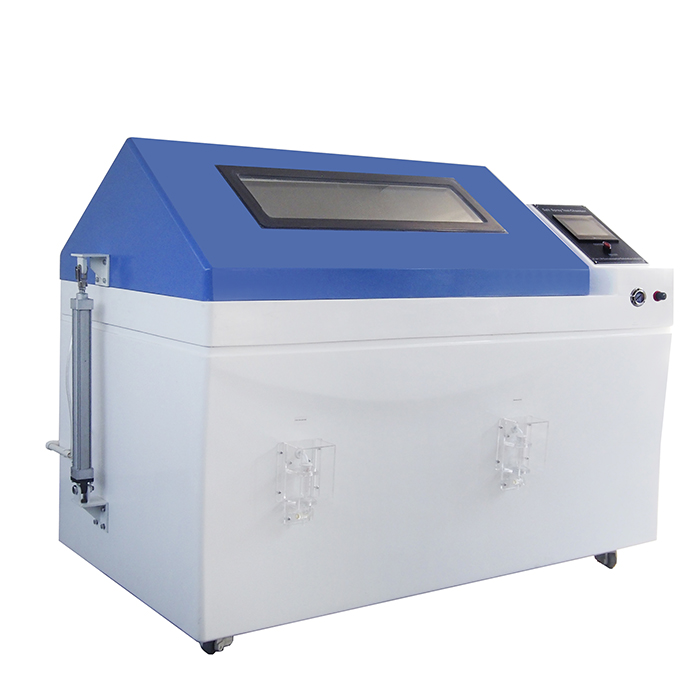

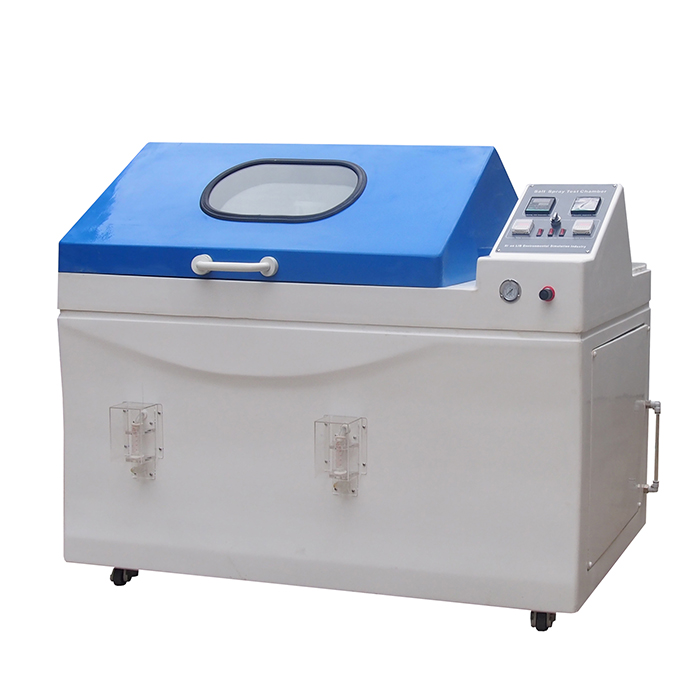

ASTM B117 Salt Spray Corrosion Test Chamber
Temperature Range:+10 ℃ ～ +90 ℃
Humidity Range:30% ~ 98% RH
Temperature Deviation:± 2.0 ℃
Humidity Deviation:+2%, -3%
Salt Fog Deposition:1～2ml / 80cm2 · h
Cooling system Mechanical compression refrigeration system
- Product Description
ASTM B117 Salt Spray Corrosion Test Chamber Manufacturer & Supplier
LIB Industry ASTM B117 Salt Spray Corrosion Test Chamber, is the testing equipment used to simulate and evaluate the corrosion resistance of materials and coatings. It creates a controlled environment where a saline solution (saltwater) is atomized and sprayed onto the test samples to accelerate the corrosion process.
The test samples, which can be metals, coatings and paint are placed inside the cabinet and exposed to the salt fog for a predetermined period of time.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|
| Controller Network connection computer. Language can be selected, English/French/Spanish/German/Russian | Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions |
|  |
ASTM B117 Salt Spray Corrosion Test Chamber Features
●Accurate Corrosion Replication: Precisely mimics harsh environments.
●Consistent Testing Results: Ensures reproducible corrosion test outcomes.
●Versatile Sample Capacity: Accommodates various sample types and sizes.
●Brine mixing system maintains uniformity of brine
●Pneumatic cover opening and closing
Application Fields
The ASTM B117 Salt Spray Corrosion Test Chamber finds applications across industries such as automotive, aerospace, coatings, metals, and more. It is instrumental in developing corrosion-resistant materials crucial for product reliability and longevity.
FAQ
Q: What is the typical test duration in the cabinet?
A: The test cycle duration is programmable and can extend up to 2000 hours, simulating prolonged exposure to corrosive environments.
Q: Can this cabinet accommodate samples of different sizes and materials?
A: Yes, the ASTM B117 Salt Spray Corrosion Test Chamber can accommodate multiple samples of varying sizes and materials for comprehensive testing.
