ozone aging test machine
Temperature Range:15 ℃ ～ 80 ℃
Humidity Range: 30% ~ 98% RH
SO2 Concentration: 25±5 ppm
Door Lock: Electromagnetic lock

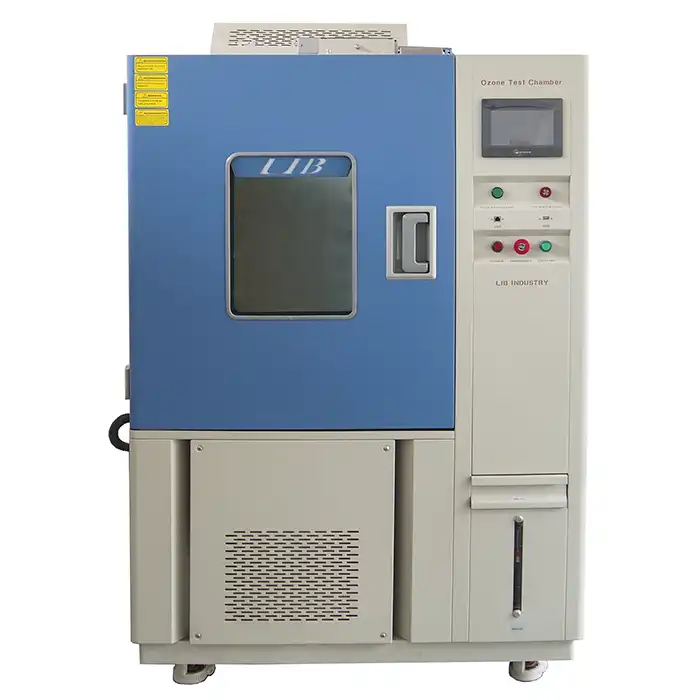

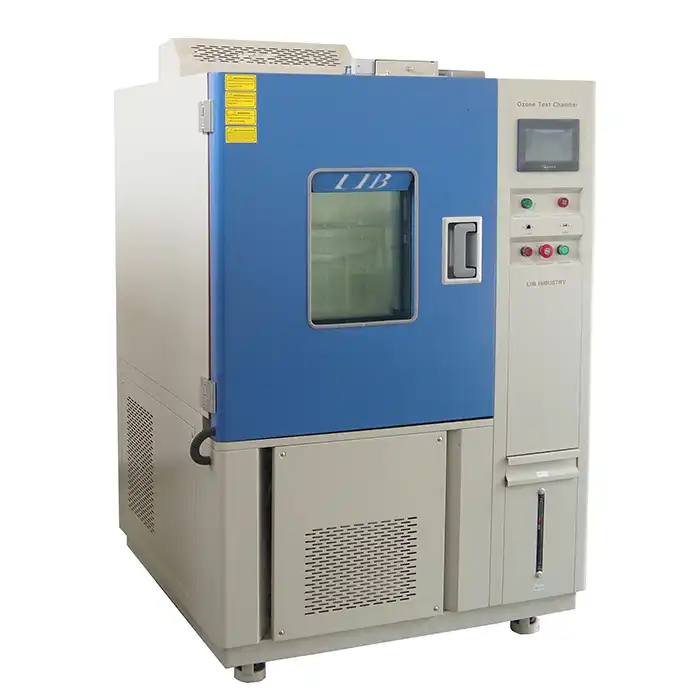

LIB Industry's ozone aging test machine
LIB Industry ozone aging test machine is used to test electrical and electronic products, electroplating products and a variety of gold and silver products of electroplating protective layer, is used to assess the material and its protective layer of corrosive gas resistance ability, as well as similar protective layer process quality comparison.
Products Description

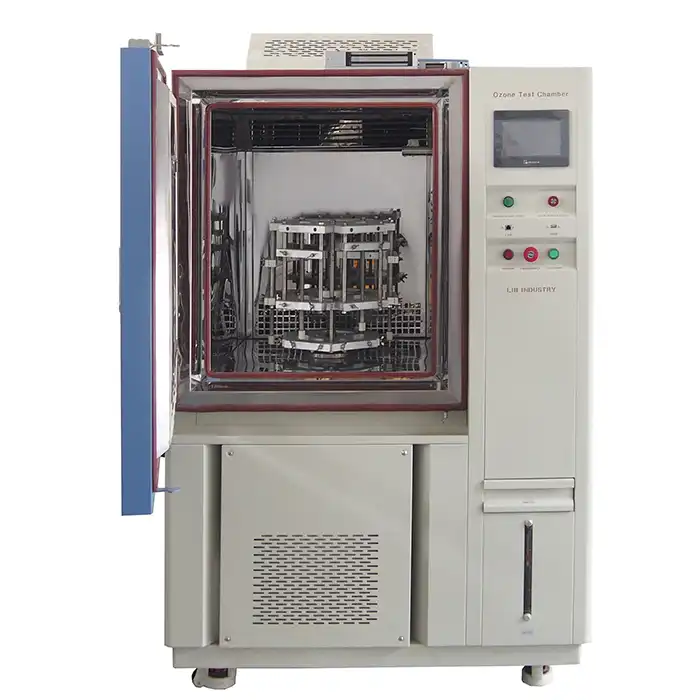

Workroom
The material of other ozone aging test machine' workroom is stainless steel, but for corrosion machine, we use stainless steel + glass fiber, effectively enhance the corrosion resistance and extend the life of the machine.
Gas Sensor
Gas sensors are highly accurate and easy to replace. Also, we have made special treatment for it, which is not easy to be corroded under high humidity.
Gas Exhaust Tank
The SO2 exhaust unit is equipped with a tank of NaOH solution for harmless treatment of SO2 through chemical reaction.
WATER RECIRCULATION SYSTEM
Water recirculation system, saving water while reducing the need for plumbing, as well as avoiding frequent water changes by testers.
WATER RE-CIRCULATION
Water purifier: Mainly purifies from the water source to the water tank.
It is recommended to replace the cartridge once a year.
COOLING SYSTEM
The standard refrigerants are environmentally friendly refrigerants R404A and R23 from french brand DuPont.
COOLING SYSTEM
Noxious Gas Flow Chamber adopts mechanical refrigeration, equipped with two TECUMSEH compressors, high refrigeration power.
Safety Devices To Prevent Gas Leakage :
The door frame is fitted with a double silicone seal made of hard silicone with better corrosion resistance.
Each machine is subjected to strict airtightness testing for many times before leaving the factory.
Door lock is an electromagnetic lock, which will generate a strong suction force and tightly attract the iron plate to lock the door.
Unlocking is operated on the controller for safety and prevent malfunction.
Products Parameter
|
Model |
OC-250 |
OC-500 |
OC-800 |
OC-010 |
|
Internal Dimension (mm) |
600*600*700 |
700*800*900 |
800*1000*1000 |
1000*1000*1000 |
|
Overall Dimension (mm) |
960*1150*1860 |
1200*1340*2020 |
1300*1540*2120 |
1500*1540*2140 |
|
Interior Volume (L) |
250 |
500 |
800 |
1000 |
|
Temperature Range |
0℃ ～ +100 ℃ |
|||
|
Temperature Fluctuation |
± 0.5 ℃ |
|||
|
Temperature Deviation |
± 2.0 ℃ |
|||
|
Humidity Range |
30% ~ 98% RH |
|||
|
Humidity Deviation |
± 2.5% RH |
|||
|
Cooling Rate |
Ambient ~ 0℃ within 20 min |
|||
|
Ozone Concentration |
1～1000PPHM |
|||
|
Sample Holder Rotate Speed |
0~10 r/min |
|||
|
Airflow Rate |
0 ~ 60L/min |
|||
|
Clamps Tensile Stretch |
5%～35% |
|||
|
Cooling system |
Mechanical compression refrigeration system |
|||
|
Refrigerating unit |
French TECUMSEH compressor |
|||
|
Heating Element |
Nichrome heater |
|||
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link |
|||
|
Water supply system |
Automatic water supply,Water purification system |
|||
|
Humidifier |
External isolation, stainless steel surface evaporation humidifier |
|||
|
Temperature Sensor |
PTR Platinum Resistance PT100Ω/MV A-class |
|||
|
Gas Sensor |
Ozone gas sensor |
|||
|
Ozone Generator |
Silent discharge type ozone generator |
|||
|
Air Circulation |
Centrifugal wind fan |
|||
|
Sample Holder |
Static + dynamic combined sample holder |
|||
|
Exterior Material |
Steel Plate with protective coating |
|||
|
Interior Material |
SUS304 stainless steel |
|||
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|||
|
Observation Window |
Interior lighting, double-layer thermo stability silicone rubber sealing |
|||
Xi'an LIB Simulation Industry, a focus on environmental test chamber enterprise. If you are interested in this ozone aging test machine, please feel free to contact us, we will reply you in the shortest time!
