The Role of Nozzle Configuration in JIS D0203 R1 R2 Rain Simulation

Rain simulation using JIS D 0203 R1 R2 rain test equipment is essential for industries that test materials and products for durability and water resistance. One of the most recognized standards for rain testing is the JIS D 0203 R1/R2 standard, which sets protocols for rain exposure in automotive and electronic components.

Understanding the JIS D 0203 Standard: Nozzle Specifications for R1 and R2

The JIS D 0203 standard defines specific guidelines for simulating rain conditions in environmental test chambers. Each classification - R1 and R2 - has different requirements based on water exposure levels. For instance, R1 testing simulates light rain, while R2 simulates heavy downpours.

The nozzle configuration plays a significant role in adhering to these guidelines. Nozzles need to meet specific spray angles, pressure settings, and water flow rates to ensure compliance. In an R1 scenario, the test chamber often uses a lower-pressure nozzle with a wider spray angle to generate a gentle rain effect. In contrast, R2 testing requires higher-pressure nozzles with a narrower spray angle to produce denser rainfall.

Beyond Spray Angle: The Impact of Droplet Size and Distribution on Test Accuracy

While spray angle is critical, droplet size and distribution further affect the accuracy of rain simulations. The JIS D 0203 standard mandates that droplets should be uniform and evenly distributed across the test specimen. Inconsistent droplet sizes can lead to uneven water exposure, potentially skewing test results.

The nozzle design directly influences droplet size. For example, a nozzle with a fine mesh or a more intricate internal structure helps generate smaller droplets, which are ideal for R1 testing. In contrast, R2 testing may require larger droplets to simulate heavy rain conditions.

Nozzle Placement and Coverage: Achieving Uniform Water Exposure Across the Test Specimen

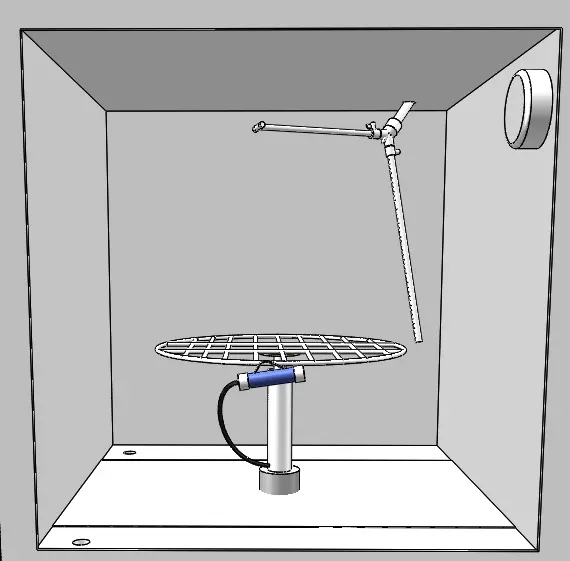

Another crucial aspect of precise rain simulation is nozzle placement within the JIS D 0203 R1 R2 rain test equipment. To ensure uniform water exposure across the entire surface of the test specimen, nozzles must be strategically arranged and angled. Inadequate placement can result in areas that are either overexposed or underexposed to water, compromising the accuracy of the test.

For example, in R2 testing, where products are subjected to intense rainfall, a grid-like nozzle arrangement ensures consistent water coverage. Moreover, adjustable nozzles allow for flexibility in testing, enabling engineers to modify coverage patterns based on the shape and size of the test specimen. This adaptability is crucial for industries that test products of varying dimensions, such as automotive parts or large electronic devices.

The distance between nozzles and the specimen also matters. A closer nozzle position results in a more concentrated spray, while a greater distance allows for a wider coverage area.

LIB JIS D 0203 R1 R2 Rain Test Equipment

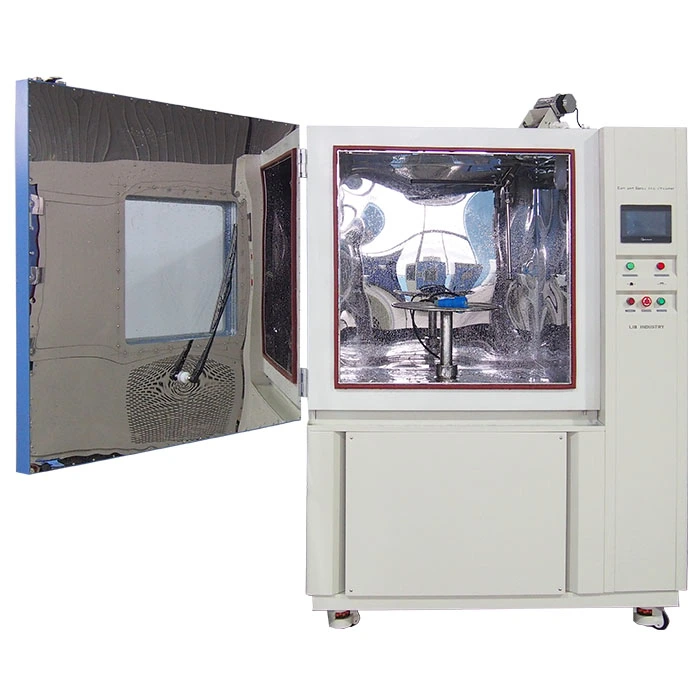

If you're looking for a reliable and high-performance rain test chamber, LIB Industry offers a comprehensive solution. Our JIS D 0203 R1 R2 rain test equipment is designed to meet global standards, providing precise and customizable rain simulation for both R1 and R2 testing. Key advantages of LIB's rain test equipment include:
