Key Features of Water Spray Jetting Chambers for IPX Testing

Water spray jetting chambers are critical instruments in the field of environmental testing, ensuring that products meet international ingress protection (IP) standards. Specifically designed for IPX testing, these chambers simulate water spray and jet conditions to evaluate how well a product resists water penetration.

Introduction to IPX Testing - Why Precision Matters

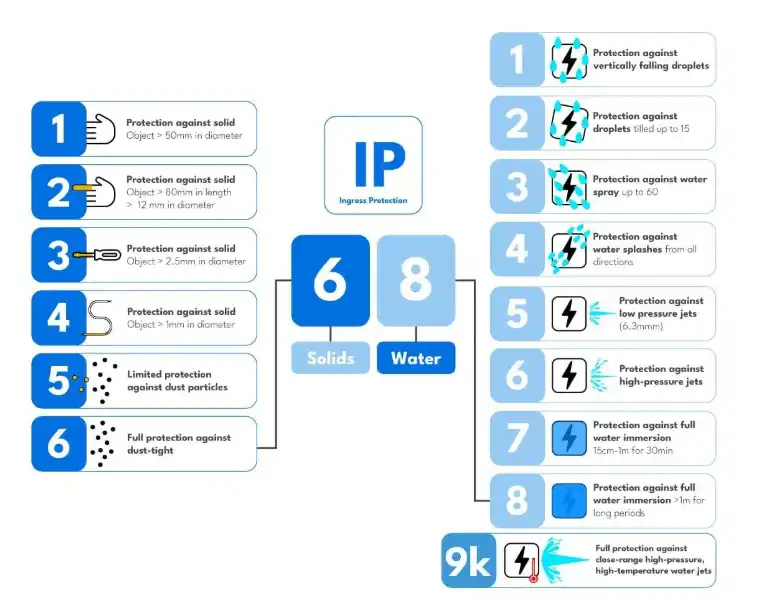

Ingress Protection (IP) testing is a globally recognized method used to assess how well products are safeguarded against dust and water. The IPX scale ranges from IPX0 (no protection) to IPX9K (high-pressure, high-temperature water jets). IPX3 through IPX6 levels deal specifically with water spray and jetting, which is where water spray jetting chambers play a vital role.

Precision in IPX testing is non-negotiable. Accurate water pressure, flow control, and nozzle systems are required to replicate real-world conditions. Without exact specifications, products may fail prematurely in the field, leading to costly recalls or safety hazards. This is why selecting a high-quality chamber, like LIB's water spray jetting chamber, is crucial.

Core Components of a Water Spray Jetting Chamber

The efficiency and reliability of a water spray jetting chamber depend on its core components. Each element of the chamber works together to simulate precise water spray conditions, ensuring that the product under test meets the necessary IP standards.

- Water Spray Nozzles: These are designed to deliver jets of water at various angles and flow rates. Nozzles must be adjustable to meet different IPX levels.

- Turntable: For even water exposure, products are placed on a rotating turntable inside the chamber. This ensures comprehensive testing on all sides of the product.

- Water Reservoir & Pump System: This system ensures a continuous water supply and consistent pressure, which is vital for accurate testing.

- Control Panel: The control panel allows operators to adjust settings such as water pressure, angle, and duration of testing.

Adjustable Nozzle Systems - Meeting IPX3 to IPX6 Requirements

Water spray jetting chambers must feature adjustable nozzle systems to meet the requirements of IPX3 to IPX6 testing. Different levels of protection demand varying intensities and angles of water spray, which is where flexibility in nozzle adjustment becomes essential.

For IPX3 and IPX4, testing involves oscillating sprays at angles up to 60° from the vertical, simulating rainfall or water splashes. The nozzles need to provide controlled, low-pressure water jets that mimic these conditions. For IPX5 and IPX6, the testing becomes more rigorous, requiring higher water pressure and direct jets, simulating conditions such as powerful hose sprays.

For example, an IPX5 test involves water jets with a flow rate of 12.5 liters per minute at a distance of 2.5 to 3 meters, while an IPX6 test increases the flow rate to 100 liters per minute. The nozzle system must be capable of delivering these exact conditions to ensure compliance with the respective IP ratings.

Pressure and Flow Control - Ensuring Accuracy Across IP Levels

One of the most critical aspects of a water spray jetting chamber is its ability to precisely control water pressure and flow rates. Accurate pressure and flow control are essential for ensuring that test results are reliable and repeatable across different IPX levels.

For IPX testing, the water pressure must be carefully regulated to simulate real-world conditions. For instance, IPX6 testing requires water jets to be applied at a pressure of up to 100 kPa, while IPX3 and IPX4 tests demand much lower pressures. Without precise control, the test results can vary, leading to inconsistent product evaluations.

Advanced water spray jetting chambers, like those offered by LIB Industry, feature sophisticated pressure and flow control systems. These systems allow users to adjust the water pressure and flow rate with precision, ensuring that each test meets the exact requirements of the relevant IPX level. The result is accurate, repeatable testing that guarantees product quality and reliability.

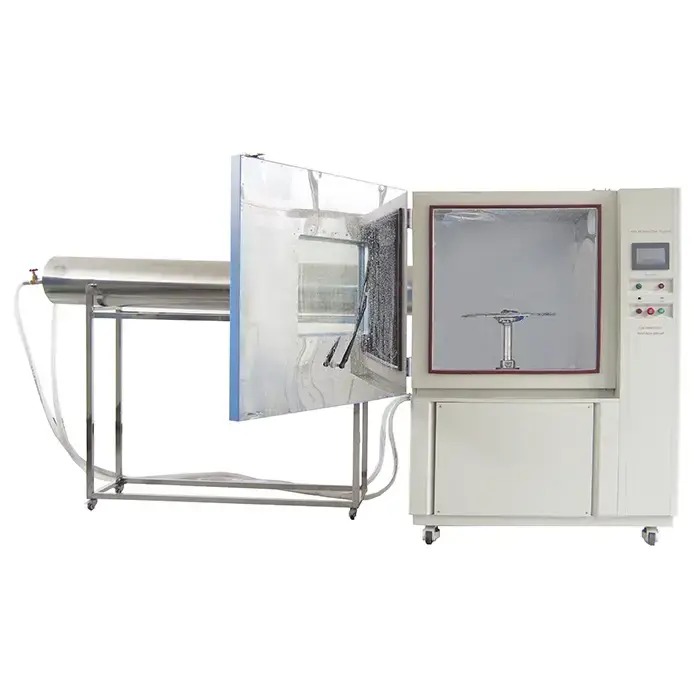

LIB Water Spray Jetting Chamber

LIB Industry offers state-of-the-art water spray jetting chambers designed to meet the rigorous demands of IPX3 to IPX6 testing. With a focus on precision, durability, and user-friendly operation, our chambers provide the perfect solution for manufacturers looking to assess the water resistance of their products.

- Adjustable Nozzle Systems: LIB chambers feature customizable nozzles that can easily be adjusted to meet the requirements for IPX3 through IPX6 testing. This flexibility allows for a wide range of test conditions, ensuring that your product is thoroughly evaluated for water resistance.

- Comprehensive Control Systems: Our chambers are equipped with advanced control panels, allowing users to fine-tune water pressure, flow rate, and testing duration. This ensures that each test is conducted to exact standards.

- Durable Construction: Made from high-quality stainless steel, LIB's water spray jetting chambers are built to withstand harsh testing environments while providing long-lasting performance.

- Customizable Options: LIB offers tailor-made solutions based on specific customer needs. Whether it's a unique size requirement or specialized testing conditions, we can design and manufacture chambers that meet your exact specifications.

By choosing LIB Industry, you not only gain access to top-tier equipment but also benefit from our comprehensive support, including installation, training, and after-sales service. To learn more about how LIB water spray jetting chambers can support your environmental testing requirements, contact us today at ellen@lib-industry.com.
